Kia Stinger: LCD windows / Distance to empty
![](images/distance_to_empty-95/1/page_316.png)

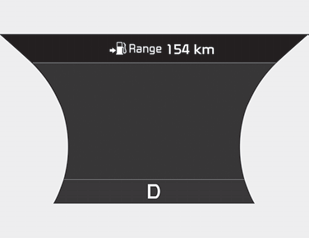

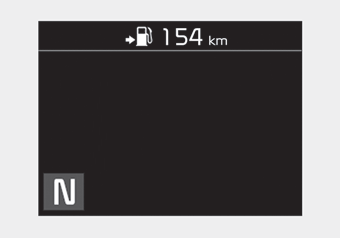

■ Type A
![](images/distance_to_empty-95/1/page_127.png)
■ Type B
• The distance to empty is the estimated distance the vehicle can be driven with
the remaining fuel.
- Distance range : 1 ~ 9,999 km (1 ~ 9,999 mi.)
• If the estimated distance is below 1 km (1 mi.), the trip computer will display
“---” as distance to empty.
✽ NOTICE
- If the vehicle is not on level ground or the battery power has been interrupted,
the distance to empty function may not operate correctly.
- The distance to empty may differ from the actual driving distance as
it is an estimate of the available driving distance.
- The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the vehicle.
- The fuel economy and distance to empty may vary significantly based on
driving conditions, driving habits, and condition of the vehicle.
(1) SPORT mode (if equipped)
This mode displays Gauge, Lap Timer, G-Force.
(2) Trip Computer mode
This mode displays driving information such as the tripmeter, fuel economy, and
so on.
❈ For ...
Description
On this mode, you can change setting of the doors, lamps, and so on.
WARNING
Do not adjust the User Setting while driving.You may lose your steering control
which could cause an acc ...
