Description and operation
Description

Installed inside the crash pad, the knee airbag (KAB) protects the driver in the event of a frontal crash. The SRSCM determines if and when to deploy the KAB.



Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using a specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

Components and components location
Components

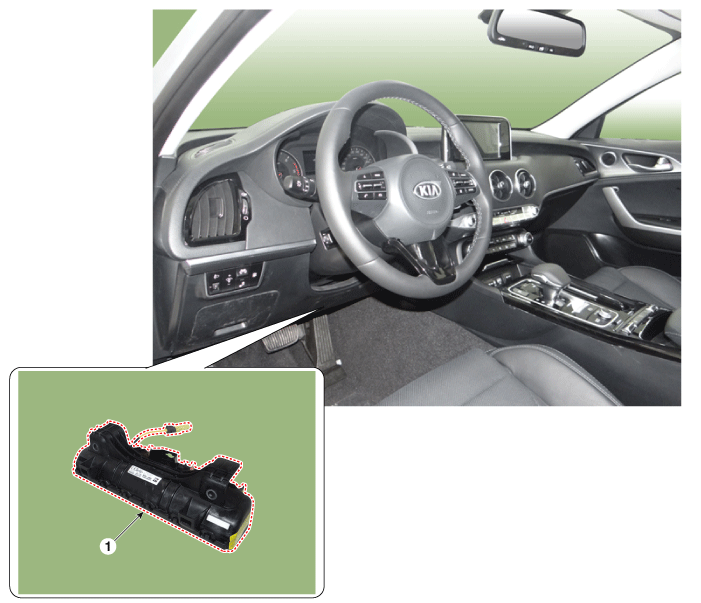

1. Knee Airbag (KAB)


Repair procedures
Removal
1.

Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.

2.

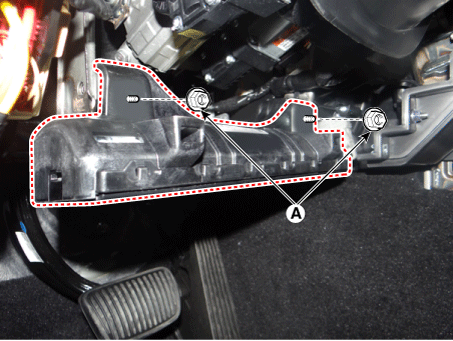

Remove the crash pad lower panel.

(Refer to Body (Interior and Exterior) - "Crash Pad Lower Panel")

3.

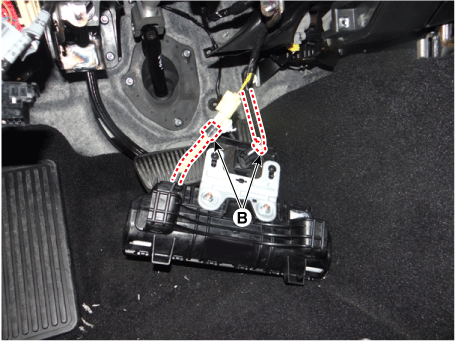

Loosen the nuts (A) and then disconnect the connector (B).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Installation
1.

Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.

2.

Install in the reverse order of removal.

3.

Reconnect the negative battery cable.

4.

After installing the knee airbag (KAB), confirm proper system operation.

• Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
