Kia Stinger: Lighting / Lighting control
The light switch has a Headlight and a Parking light position.

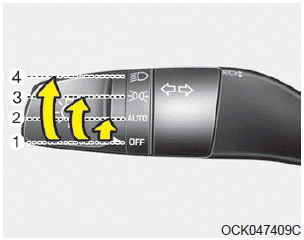

To operate the lights, turn the knob at the end of the control lever to one of the following positions:
(1) OFF position
(2) Auto light position
(3) Parking & Tail light
(4) Headlight position

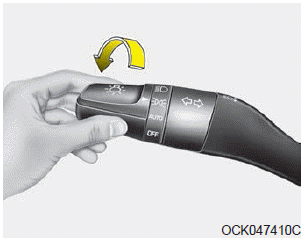

Parking & Tail light
When the light switch is in the parking light position, the tail, license and parking lights will turn ON.

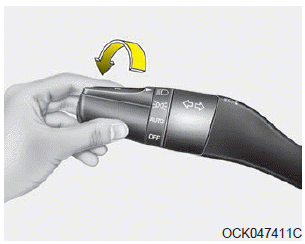

Headlight position
When the light switch is in the headlight position, the head, tail, license lights will turn ON.
✽ NOTICE
The ignition switch must be in the ON position to turn on the headlights.

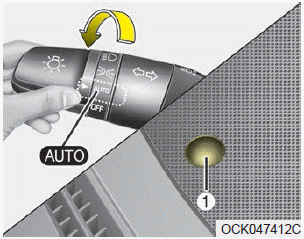

Auto light/DBL position
When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside the vehicle.
If your vehicle is equipped with the dynamic bending light (DBL), it will also operate when the headlamp is ON.
CAUTION
- Never place anything over the sensor (1) located on the instrument panel, this will ensure better auto-light system control.
- Don’t clean the sensor using a window cleaner, the cleaner may leave a light film which could interfere with sensor operation.
- If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
Lighting
Battery saver function
The purpose of this feature is to prevent the battery from being discharged
if the lights are left in the ON position. The system automatically shuts off
the parking l ...
High beam operation
To turn on the high beam headlamp, push the lever away from you. The lever will
return to its original position. The high beam indicator will light when the headlight
high beams are switched on. ...
