Kia Stinger: Fuel filler lid / Opening the fuel filler lid

Kia Stinger CK 2018-2025 Owners Manual / Features of your vehicle / Fuel filler lid / Opening the fuel filler lid

The fuel filler lid must be opened from inside the vehicle by pressing the fuel filler lid opener button.

If the fuel filler lid does not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.

1. Stop the engine.

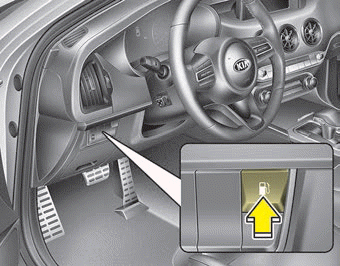

2. To open the fuel filler lid, push the fuel filler lid opener button.

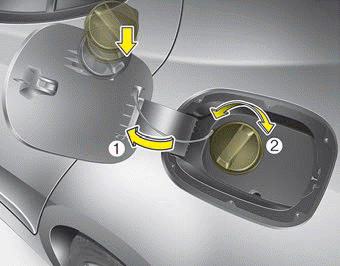

3. Pull open the fuel filler lid (1).

4. To remove the cap, turn the fuel filler cap (2) counterclockwise.

5. Refuel as needed.

Fuel filler lid
...

Closing the fuel filler lid
1. To install the cap, turn it clockwise until it “clicks” once. This indicates that the cap is securely tightened. 2. Close the fuel filler lid and push it in lightly making sure that it is se ...
