Kia Stinger: Features of your vehicle / Parking distance warning - reverse
The rear parking distance warning - reverse assists the driver during backward
movement of the vehicle by chiming if any object is sensed within a distance of
120 cm (47 in.) behind the vehicle.
This system is a supplemental system and it is not intended to nor does it replace

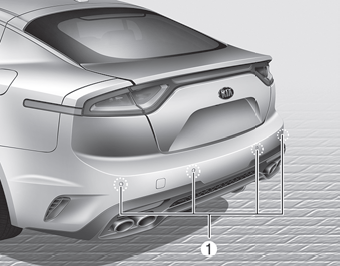

the need for extreme care and attention of the driver. The sensing range and objects
detectable by the back sensors (1) are limited. Whenever backing-up, pay as much
attention to what is behind you as you would in a vehicle without a parking distance
warning-reverse.
WARNING
The parking distance warningreverse is a supplementary function only. The
operation of the parking distance warningreverse can be affected by several factors
(including environmental conditions). It is the responsibility of the driver to
always check the area behind the vehicle before and while backing up.
