Specification
Specifications

Item
Specification
Rated voltage
DC 12 V
Operating voltage
DC 9.0 - 16.0
Operating temperature
-86 - 167°F (-30 - 75°C)
Dark current
Max. 1 mA
Output power
5 W
Output frequency
110 ± 5 kHz

Components and positions
Components

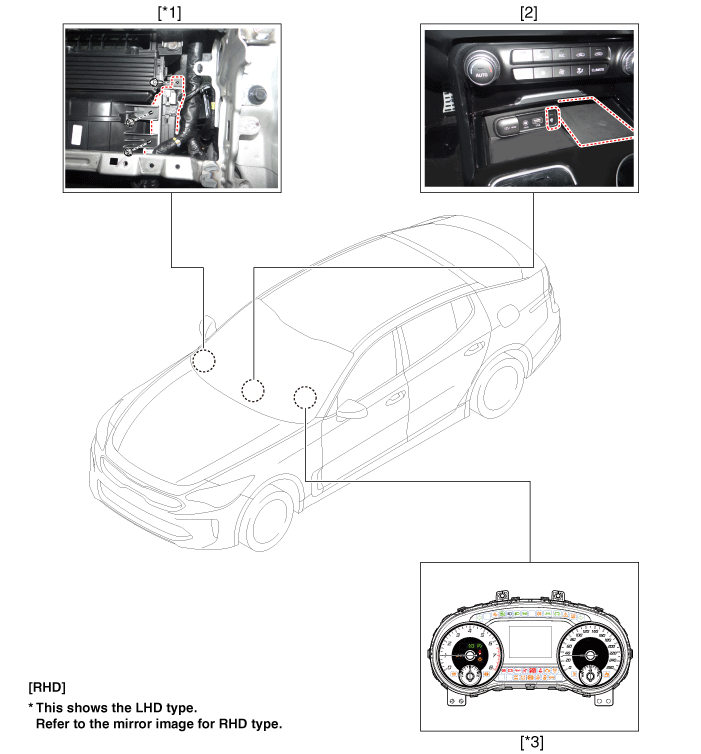

1. Integrated body control unit (IBU)
2. Wireless power charging unit
3. Instrument cluster

Description and operating principle
Description and Operation

Wireless Power Charger System

During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.

Mobile phones certified with the wireless charging standard WPC (Qi 1.2.2) or equipped with an exclusive wireless charging case can be used.

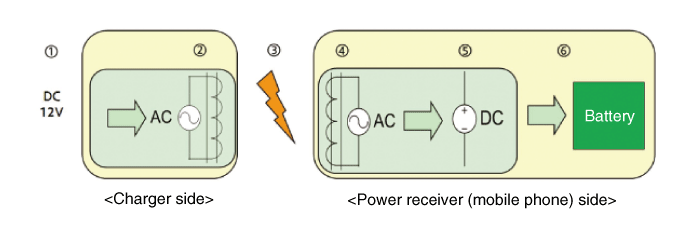

Wireless Power Charging System Flow Chart

1.

Supply vehicle power.

2.

Convert to AC. Generate electromagnetic field in 1st coil.

3.

Generate induced current in power receiver from electromagnetic induction.

4.

Generate AC in 2nd coil.

5.

Convert to DC.

6.

Charge battery.

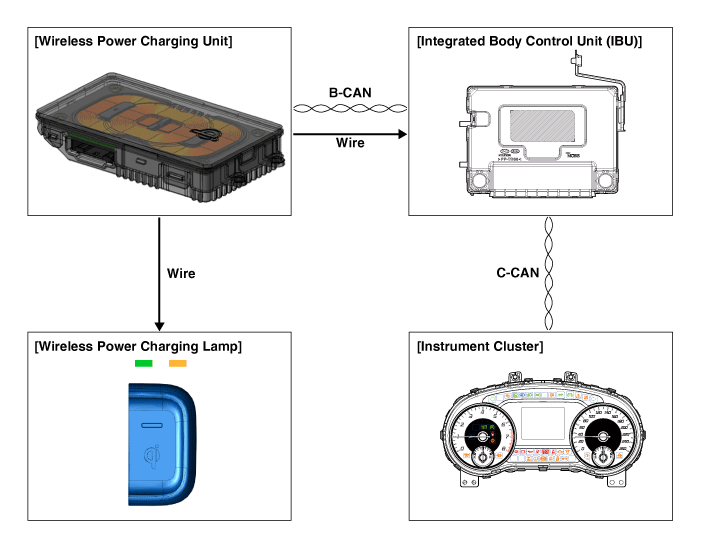

System Configuration Diagram

1.

Instrument cluster : Alerts about contact with mobile phone.

2.

Wireless charging lamp : Displays the charging status.

3.

Integrated body control unit (IBU) :

(1)

Determines contact with mobile phone.

(2)

Stops charging during the activation of LF.

Major Functions of Wireless Power Charger System

1.

Charging Function

(1)

Activation method

a.

Close all doors of the car.

b.

Switch vehicle power to ACC or IG ON.

c.

Place the wireless charging-enabled mobile phone on the tray.

(2)

Charging status display

Mode
Charging LED display
Remarks
Stand by for charging
LED turned OFF


Charging in process
Amber LED turned ON


Charging completed
Green LED turned ON


Charging error
Amber LED blinks

Blinks 10 times for 10 seconds, then LED is turned off for 50 seconds (total 60 seconds)


2.

If you leave the smart phone on the charging pad when the vehicle ignition is in OFF, the vehicle will alert you through warning messages.

(1)

Activation method

3.

Overheating prevention

(1)

Activation method

a.

If the thermistor temperature inside the wireless charging module rises above a certain level (158 °F (70 °C)), charging will stop to protect the mobile phone battery.



The amber LED of the charging display lamp blinks 10 times for 10 seconds.

b.

If the thermistor temperature falls below a certain level (149 °F (65 °C)), charging will restart.



When the charging function is restarted, the amber LED of the charging display lamp will be turned on.

4.

Foreign matter detection

(1)

Charging will be stopped if there is a coin or other metallic object between the wireless charging unit and the mobile phone.

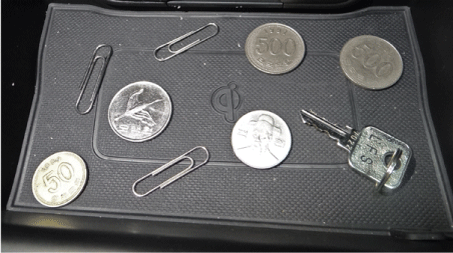

[Foreign matter]



Foreign matter : All metallic objects such as coins, clips, and precious metals

The amber LED of the charging display lamp blinks 10 times for 10 seconds, and then it is turned off for 50 seconds (total 60 seconds).

The process is repeated for every 60 seconds.



Be careful as touching the foreign matter by hand may cause burns.

(2)

When system has detected foreign matter and stopped charging the mobile phone, the wireless charging fucntion will resume immediately after removing the foreign matter.



When the charging function is restarted, the amber LED of the charging display lamp will be turned on.

5.

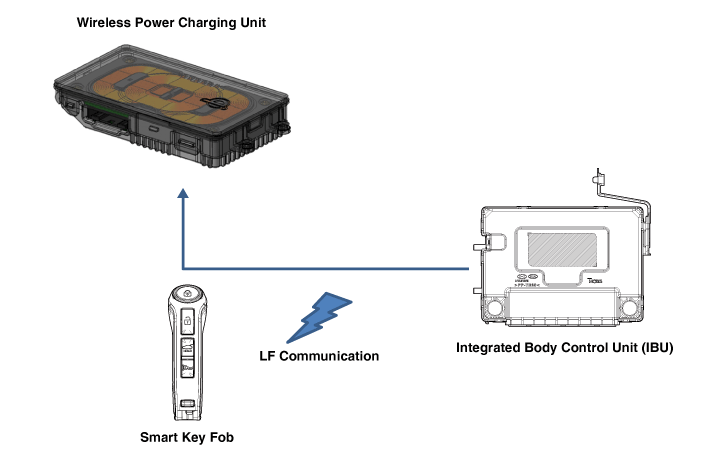

IBU unit LF frequency interference prevention

This function prevents interference between the wireless charging frequency and smart key unit frequency band.

(1)

Wireless charging is stopped when the door is open or the IBU unit is in LF mode (searching for smart key).

e.g. Wireless charging function is stopped if the driver carries the smart key out of the vehicle during IG ON.



Charging will stop and the amber LED of the charging display lamp will turn off.

(2)

It will return to normal operating status when the LF mode of the IBU unit is completed.

6.

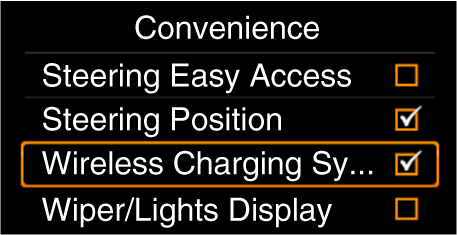

Turn the wireless charging function ON/OFF with USM.

※ Tailgate applies to RV vehicle models.

Protection of Wireless Power Charger System

Item
Condition
Status
Protects against low/high voltage
Protects and stops charging under 8.5 V and over 16.5 V
LED OFF
(Stops operation)
Charges over 9.0 V and under 16.0 V
Protects against reverse voltage
Protects and stops charging in case of reverse voltage
LED OFF
(Stops operation)
Protects against overcurrent
Protects and stops charging in case of detecting 4.5 A
Amber LED blinks
Protects against overheating
Protects and stops charging in case of detecting 158°F (70°C) by internal temperature sensor of wireless charging module
Amber LED blinks
Resumes under 149°F (65°C)
Foreign matter
(Coins, clips, precious metals, etc.)
Protects and stops charging in case of detecting foreign matter (overheating prevention)
Amber LED blinks
Prevents frequency interference
Protects and stops charging by activating SMK in case door or tailgate is open
LED OFF
(Stops operation)
Resumes in 3.5 seconds after all doors and tailgate are closed and SMK operation is completed
Alert for contact with mobile phone

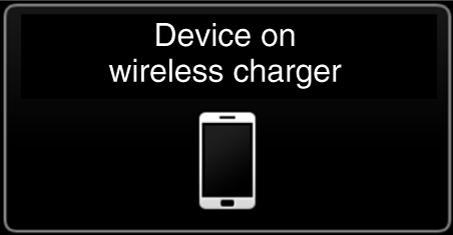

In case of smart phone on the charging pad when opening the door after ignition OFF
Displays warning message on the instrument panel (for about 4-5 seconds)

※ Tailgate applies to RV vehicle models.
