Kia Stinger: ISG (Idle Stop & Go) System / DC/DC Converter

Kia Stinger CK 2018-2024 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / DC/DC Converter

Components and components location

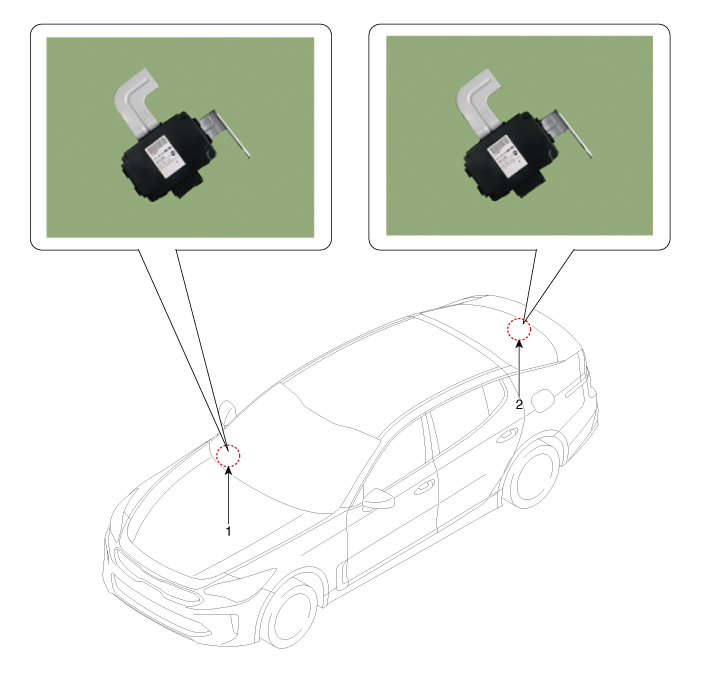

Components Location

Schematic diagrams
Circuit Diagram

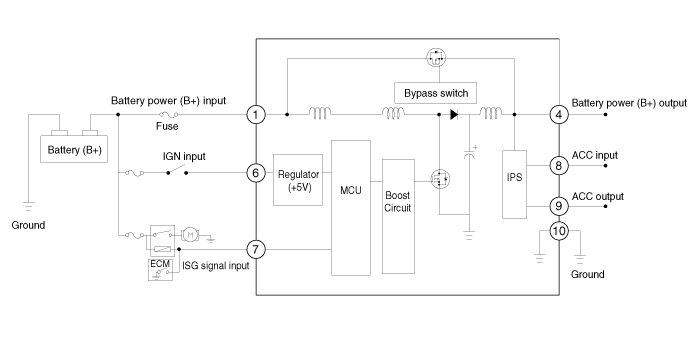

[200W]

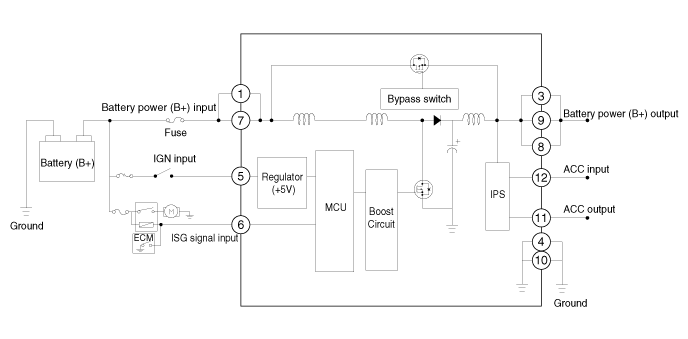

[400W]

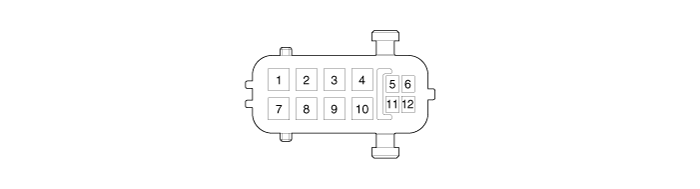

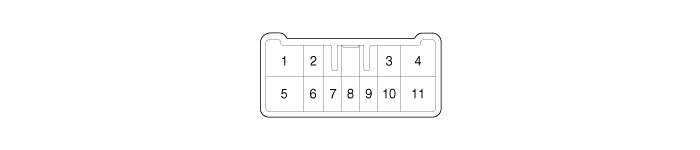

Terminal Function
[200W]

PIn.
Description
PIn.
Description
1
Battery power (B+) input
7
ISG signal input
2
-
8
ACC input
3
-
9
ACC output
4
Battery power (B+) output
10
Ground
5
-
11
-
6
IGN1 input


[400W]

PIn.
Description
PIn.
Description
1
Battery power (B+) input
7
Battery power (B+) input
2
-
8
Battery power (B+) output
3
Battery power (B+) output
9
Battery power (B+) output
4
Ground
10
Ground
5
IGN1 input
11
ACC output
6
ISG signal input
12
ACC input

Repair procedures
Removal
[200W]
1.

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.

Remove the glove box housing.

(Refer to Body (Interior and Exterior) - "Glove Box Housing")

3.

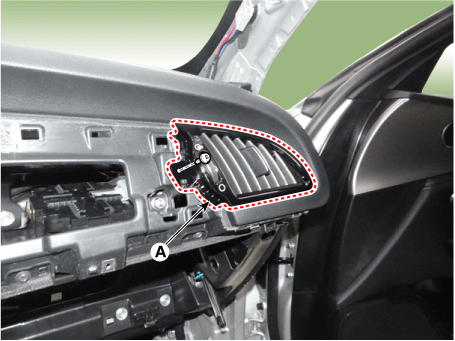

Remove the [RH] side air bant duct (A) after loosening the mounting screw.

4.

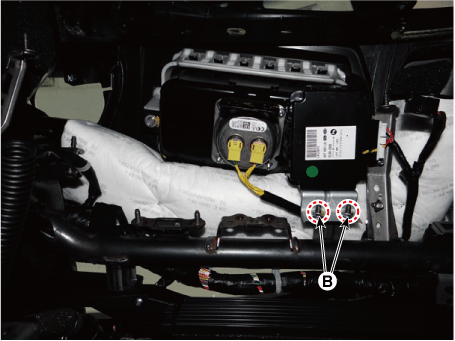

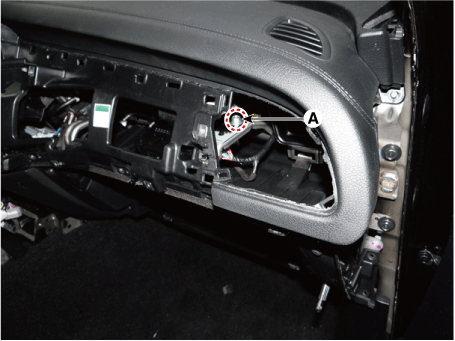

Remove the DC/DC converter after loosening the mounting bolt (A) and nut(B).

[400W]
1.

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.

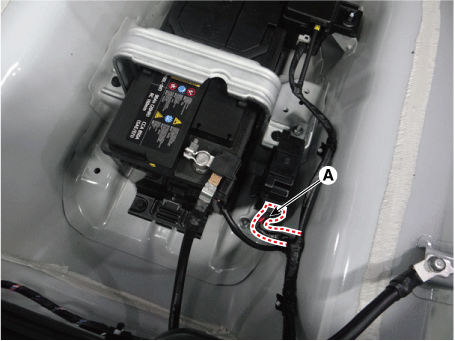

Disconnect the DC/DC converter connector (A).

3.

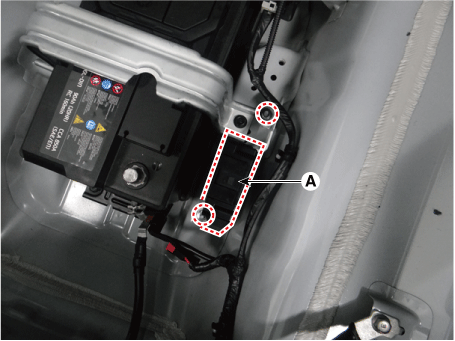

Remove the DC/DC converter (A) after loosening the mounting nuts.

Installation


After reconnecting the battery negative cable, ISG function does not operates until the system is stabilized, about 4 hours. If disconnecting the negative (-) battery cable from the battery during repair work for the vehicle equipped with AMS function, Battery sensor recalibration procedure should be performed after finishing the repair work.

1.

Install in the reverse order of removal.
