Description and operation

Description

EPS (Electric power steering, Column assist type) system is an engine operation independent steering system that uses an electric motor to assist the steering force.

EPS control module controls the motor operation based on input signals from torque sensor and steering angle sensor via CAN (Controller Area Network), resulting in a more precise and timely control of steering assist thatn conventional engine-driven hydraulic systems.

Components (Steering Angle Sensor, Torque Sensor, Fail-safe relay, etc.) of the EPS system are located inside the steering column. EPS unit assembly, steering column, and EPS unit assembly must not be disassembled for inspection. They must be replaced if necessary.

Note With Regard to Diagnosis

Trouble factor	Check item	Trouble symtom	Explanation	Note
Drop, impact, and overload	Motor	Abnormal noise	- Visible or invisible damage may occur. The steering wheel may pull to one side when dropped parts are used. Precise parts of motor / ECU are sensitive to vibration and impact. Overload may cause unexpected damage.	- Do not use the impacted EPS. - Do not overload each part.
	ECU	- Circuit damage - Wrong welding point - Broken PCB - Damaged precise parts		- Do not use the impacted EPS. - Do not overload each part.
	Torque sensor	Insufficient steering effort	Overload to INPUT shaft can cause malfunction of the torque sensor	- Do not impact the connecting parts (when inserting and torquing). - Use the specified tool to remove the steering wheel. (Do not hammer on it.) - Do not use the impacted EPS.
	Shaft	Insufficient steering effort (Uneven between LH and RH)		Do not use impacted EPS
Pull/Dent	Harness	- Malfunctioning - Power operation impossible - Malfunction of EPS	Disconnection between harness connecting portion and harness	Do not overload the harness
Abnormal storage temperature	Motor/ECU	Abnormal steering effort by improper operation of the motor/ECU	- Waterproof at normal condition - Even a slight moisture can cause malfunction in precise parts of the motor / ECU	- Maintain normal storage temperature and humidity. - Avoid submerging in water.

1.	Do not impact the electronic parts. If they are dropped or impacted, replace them with new ones.

2.	Avoid heat and moisture to the electronic parts.

3.	Do not contact the connect terminal to avoid deformation and static electricity.

4.	Do not impact the motor and torque sensor parts. If they are dropped or impacted, replace them with new ones.

5.	The connector should be disconnected or connected with ignition OFF.

Components and components location

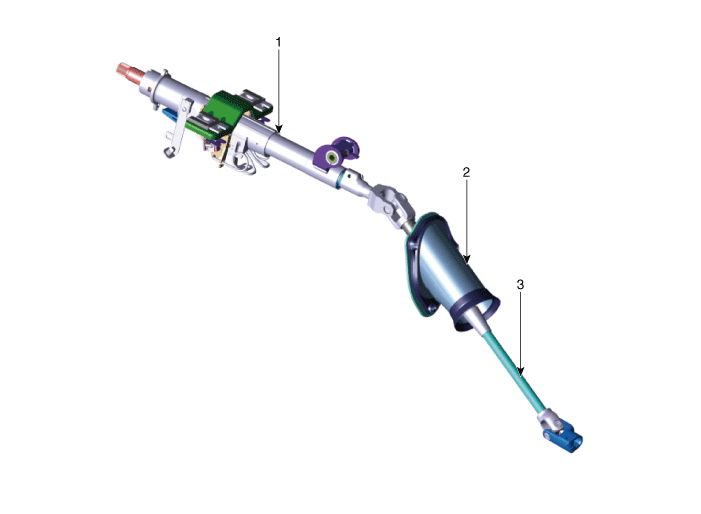

Components

1. Steering column
2. Dust cover

3. Universal joint

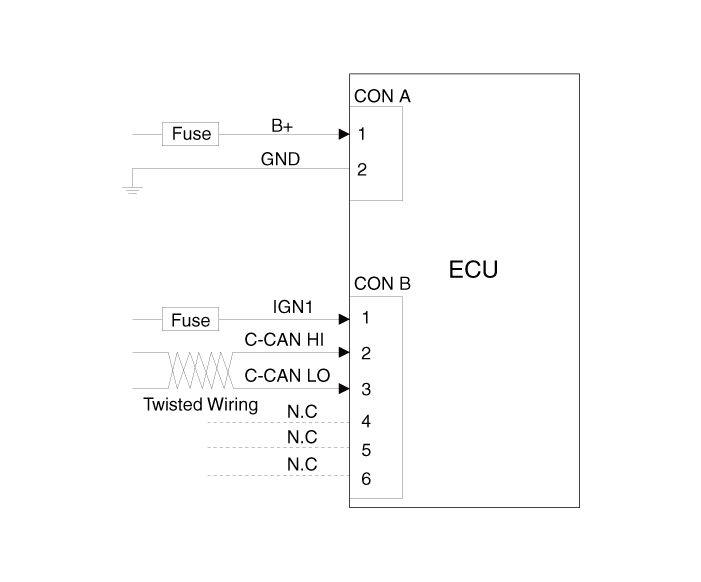

Schematic diagrams

Schematic Diagrams

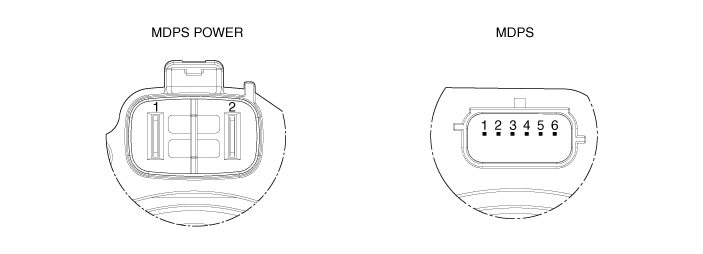

Harness Connector

Item	Pin	Pin name
MDPS Power	1	Battery +
MDPS Power	2	Battery -
MDPS Unit	1	Ignition
	7	CAN High
	8	CAN Low

Repair procedures

General Inspection

Before and after servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symptom is detected, perform necessary remedy and inspection.

Test condition	Normal condition: Motor must not supply steering assist.
	Symptom	Possible cause	Remedy
IG Off	Motor supplies steering assist.	ASP is not calibrated.	Perform the ASP calibration using a scan tool.
		IG power supplies	Inspect the IG power supply line.

Test condition	Normal condition: Motor must not supply steering assist, Warning lamp is illuminated.
Test condition	Symptom	Possible cause	Remedy
IG On/Engine Off	Motor supplies steering assist.	ASP is not calibrated.	Perform the ASP calibration using a scan tool.
	Motor supplies steering assist.	EMS CAN signal is not received.	Inspect the CAN line.
	Warning lamp is not illuminated.	Cluster fault	Inspect the cluster and cluster harness.

Test condition	Normal condition: Motor supplies steering assist, Warning lamp is not illuminated.
	Symptom	Possible cause	Remedy
IG On/Engine On	Warning lamp is illuminated and motor does not supply steering assist.	EPS (Hot at all times) and IG power supply fault	Inspect the connector and harness for EPS (Hot at all times) and IG power supply line.
		DTC is detected by system.	Perform the self test using a scan tool and repair or replace.
	Warning lamp is illuminated and motor supplies steering assist.	ASP is not calibrated.	Perform the ASP calibration using a scan tool.
		CAN communication between EPS and cluster is fault.	Inspect the CAN line.

ASP: Absolute Steering Position

CAN: Controller Area Network

EMS: Engine Management System

The following symptoms may occur during normal vehicle operation and if there is no EPS warning light illumination, the EPS system is not malfunctioning.

•	After switching the ignition on, the steering wheel becomes heavier for about 2 seconds to perform EPS system diagnostics, and then returns to normal steering condition.

•	When switching on or off the ignition, the EPS relay noise may occur, which is considered normal.

•	If the vehicle is steered in stationary or low speed driving condition, motor noise may occur, which is considered normal.

Caution for ASP (Absolute Steering Position) calibration or EPS type recognition

•	Check that the battery is fully charged before ASP calibration or EPS type recognition.

•	Be careful not to disconnect any cables connected to the vehicle or scan tool during ASP calibration or EPS type recognition.

•	After completing the ASP calibration or EPS type recognition, switch off the ignition and wait for several seconds. Then, start the engine to confirm normal operation of the vehicle.

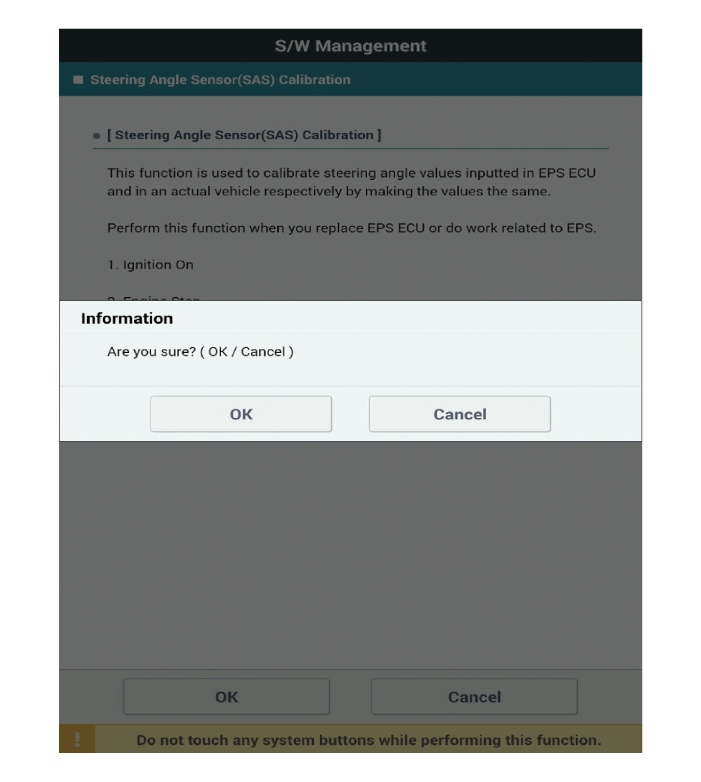

ASA Calibration

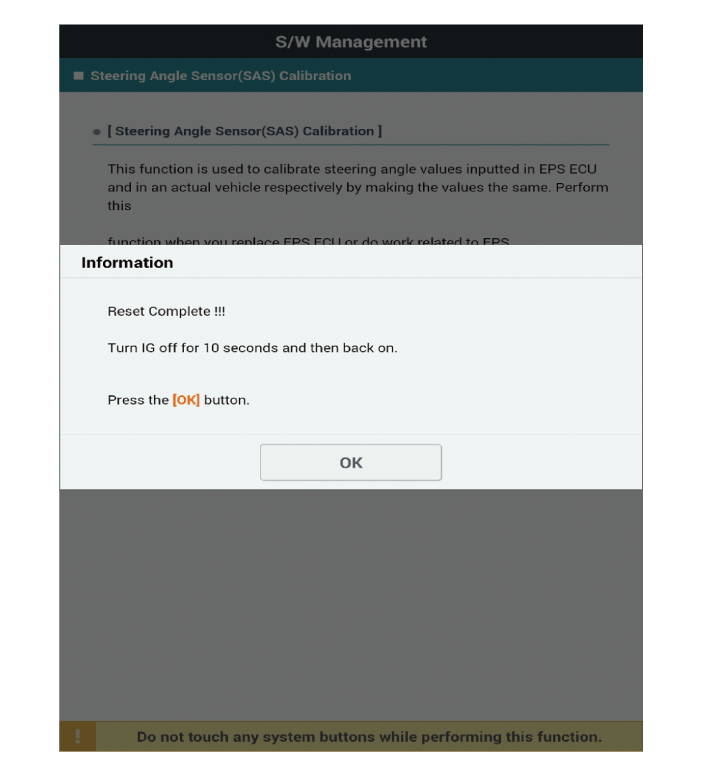

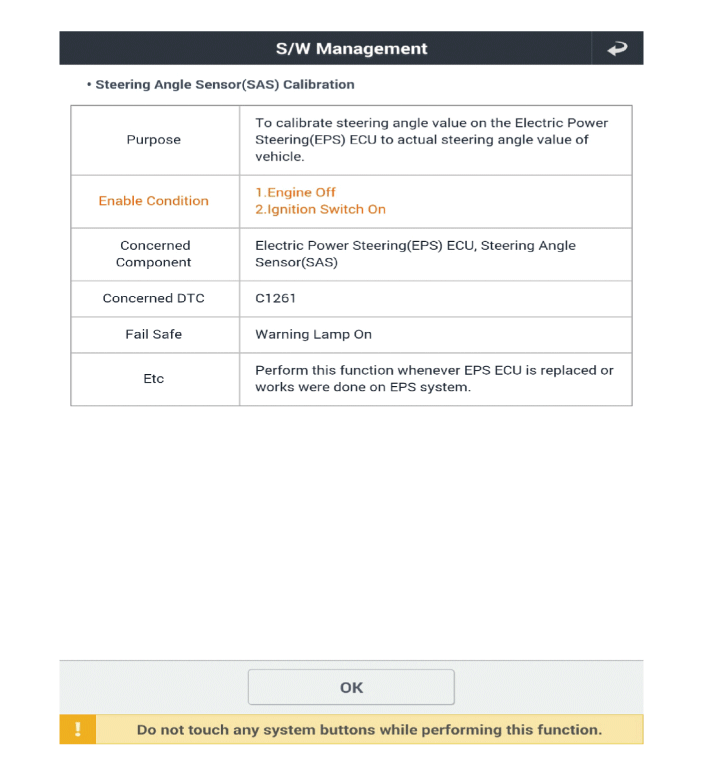

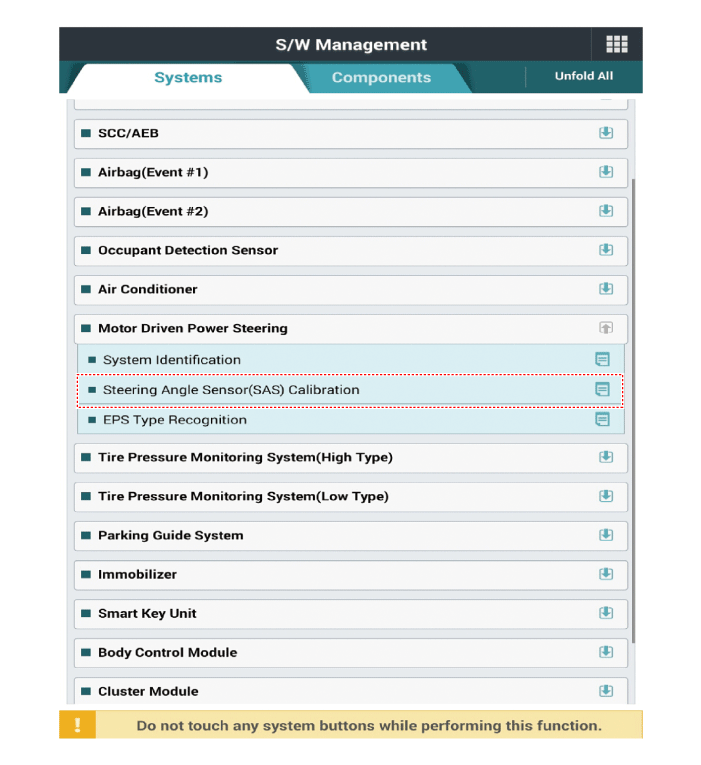

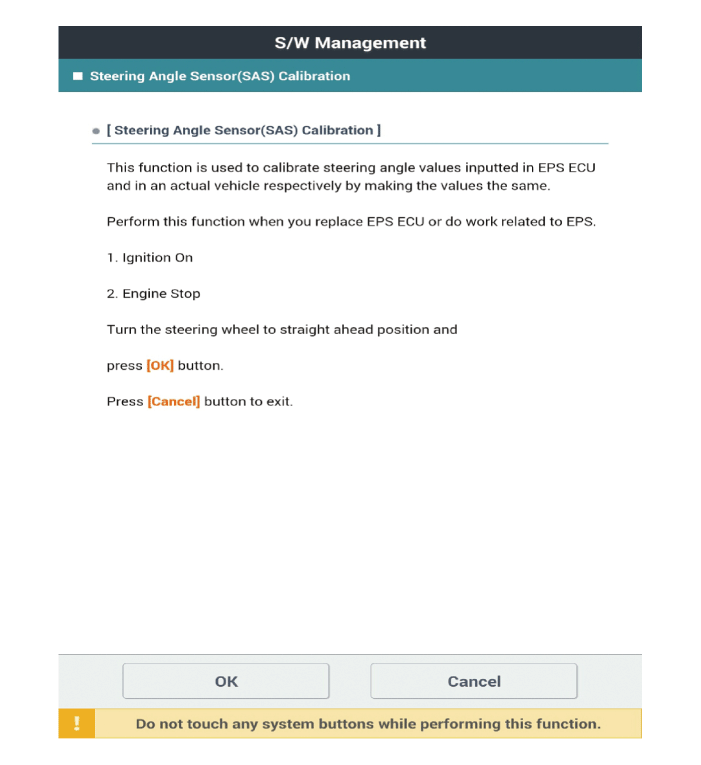

1.	Select "Steering Angle Sensor (SAS) Calibration".

2.	Proceed with the test according to the screen instructions.

EPS Type Recognition Procedure

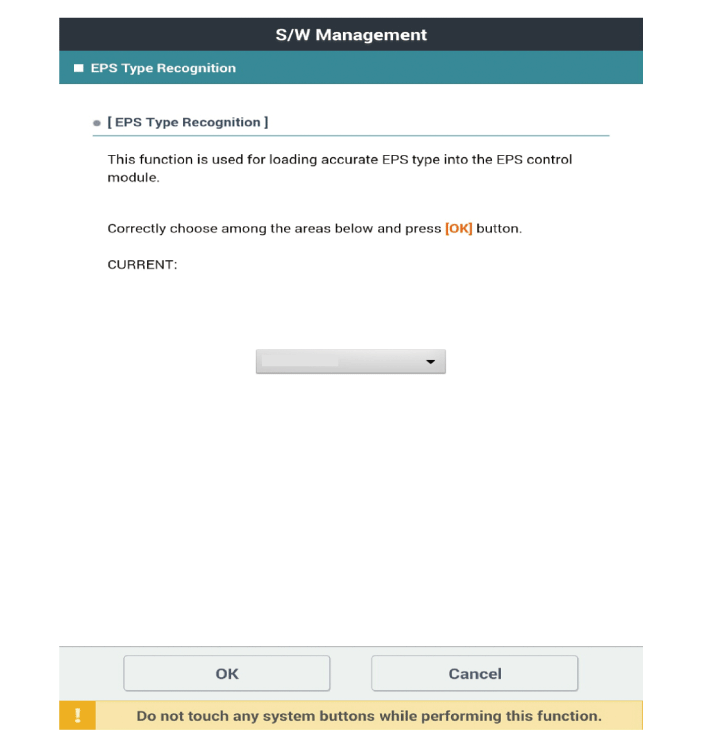

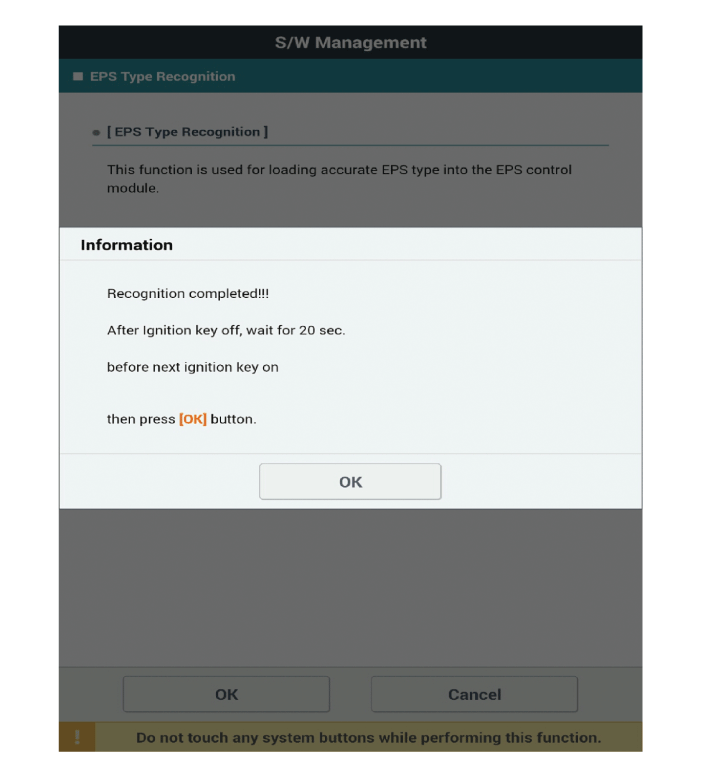

1.	Select "EPS Variant Coding".

2.	Proceed with the test according to the screen instructions.
