Repair procedures

Removal

1.	Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.	Remove the fuel filler cap after opening the fuel filler door.

3.	Lift the vehicle.

4.	Remove the rear-left wheel & tire and wheel house cover.

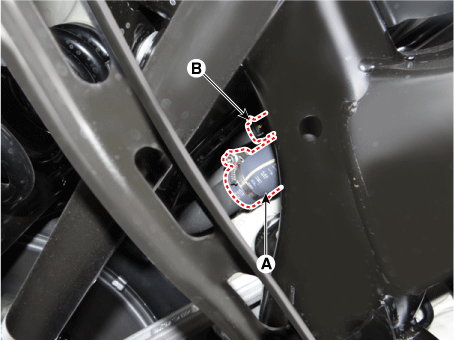

5.	Disconnect the fuel filler hose (A) and leveling hose (B).

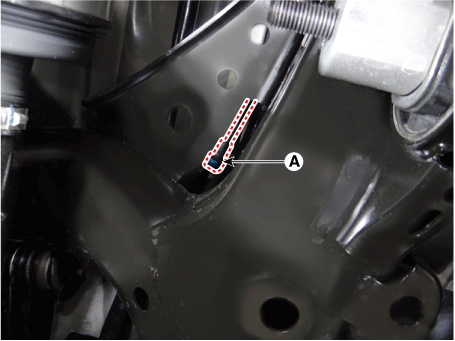

6.	Disconnect the ventilation (A).

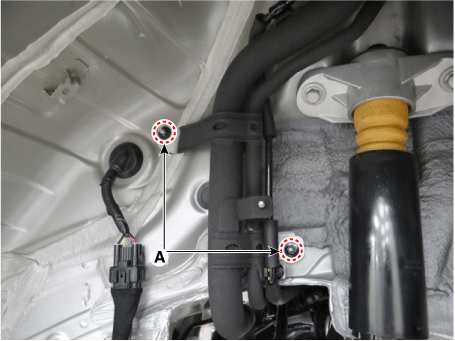

7.	Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).

Installation

1.	Install in the reverse order of removal.
