Kia Stinger: Steering wheel / Heated steering wheel

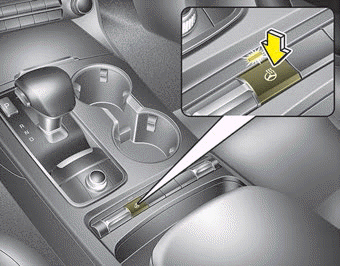

With the Engine Start/Stop Button in the ON position, pressing the heated steering
wheel button warms the steering wheel. The indicator on the button will illuminate.
To turn the heated steering wheel off, press the button once again. The indicator
on the button will turn off.
WARNING
If the steering wheel becomes too warm, turn the system off. The heated steering
wheel may cause burns even at low temperatures, especially if used for long periods
of time.
✽ NOTICE
The heated steering wheel will turn off automatically approximately 30 minutes
after the heated steering wheel is turned on.
CAUTION
- Do not install any type of grip cover for the steering wheel, it may
impair the function of the heated steering wheel system.
- When cleaning the heated steering wheel, do not use an organic solvent
such as paint thinner, benzene, alcohol and gasoline. Doing so may damage the
surface of the steering wheel.
- If the surface of the steering wheel is damaged by a sharp object, damage
to the heated steering wheel components could occur.
Tilt and telescopic steering allows you to adjust the steering wheel before you
drive.You can also raise it to give your legs more room when you exit and enter
the vehicle.
The steering wheel sho ...
To sound the horn, press the horn symbols on your steering wheel. Check the horn
regularly to be sure it operates properly.
✽ NOTICE
To sound the horn, press the area indicated by the horn sym ...
Other information:
Specifications
Specification
Item
Specification
Power supply(V)
12
Operation voltage (V)
9 - 16
Description and operation
Description
The smart cruise control unit is install ...
Repair procedures
Inspection
Check the pads for excessive wear, discs for run out and wear, and calipers for
fluid leakage.
Front Brake
Front brake disc thickness
check
1.
Check the brake pads for wear and fade.
2.
Check the ...
