Description and operation

Operation

General Function

•	Auto-learn takes place only once per Ignition cycle.

•	On successful completion, 4 road wheel sensor ID's are latched into memory for monitoring.

•	Until Auto-learn completes, previously learned sensors are monitored for under inflation / leak warnings.

General Conditions to Learn New Sensors:

•	Receiver must determine that it is confident that sensor is not temporary:

a.	Uses vehicle speed.

b.	Uses confidence reduction of previously learned sensors.

•	Typical time at driving continuously over 15.5 mph(25 kph) to learn a new sensor is up to 20 minutes.

General Conditions to Un-Learn a sensor that is removed :

•	It takes less than 20 minutes at 15.5 mph(20~30 kph).

•	Confidence reduction is dependent on time which vehicle is driven at speed greater than or equal to 12.4 mph(20~30 kph).

Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.	Remove the glove box housing. (Refer to Body - "Glove box housing")

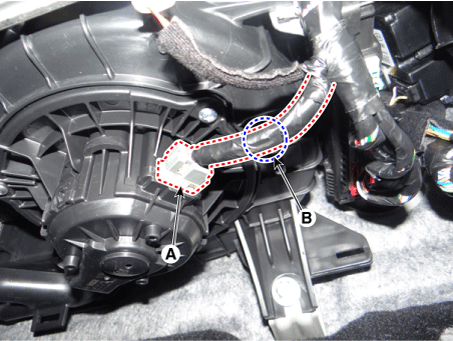

3.	Disconnect the blower motor connector (A) & fix clip (B).

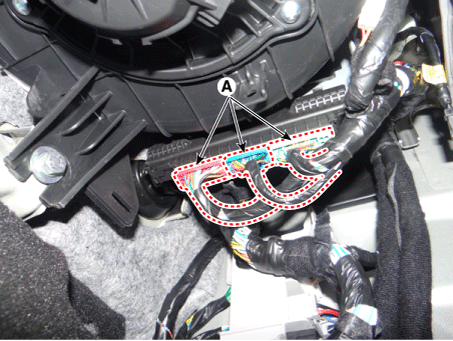

4.	Disconnect the integrated body control unit (IBU) connector (A).

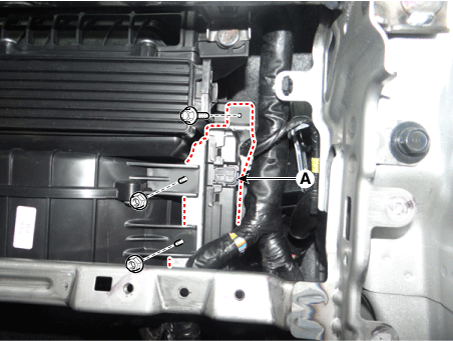

5.	Loosen the nut & bolt and then remove the integrated body control unit (IBU) (A).

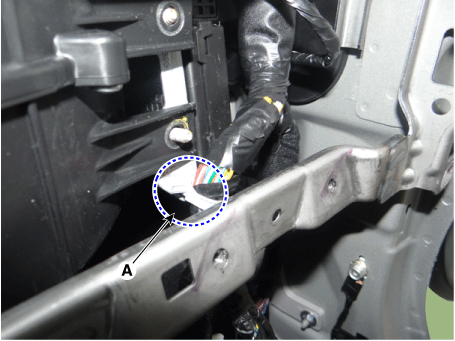

6.	Disconnect the wiring hannes fix clip (A) from the integrated body control unit (IBU).

Diagnosis procedure by using diagnostic device

The main contents of diagnostic method using diagnostic device are as follows:

1.	Connect self-diagnosis connector (16 pins) located in the lower driver side crash pad to self-diagnosis device, and then turn on the self-diagnosis device after key is ON.

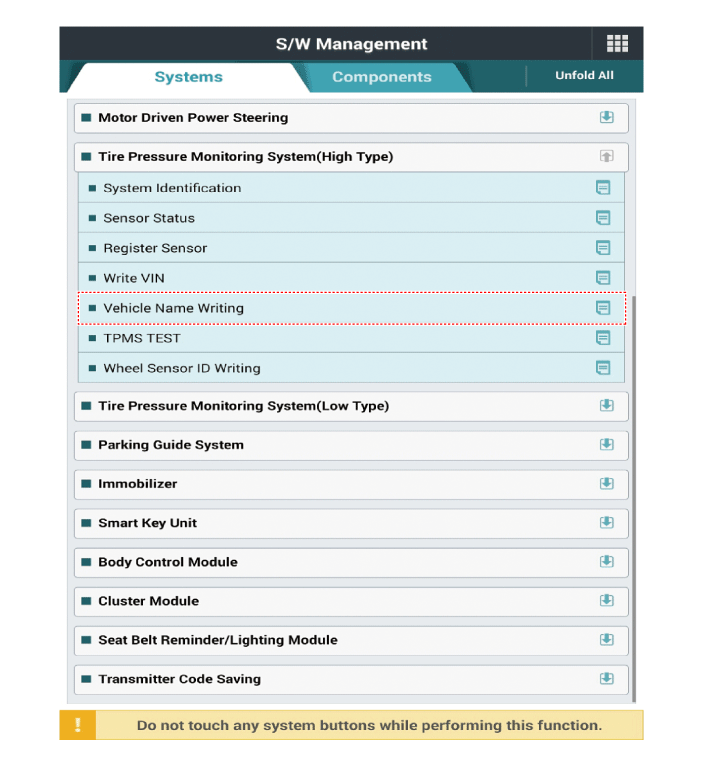

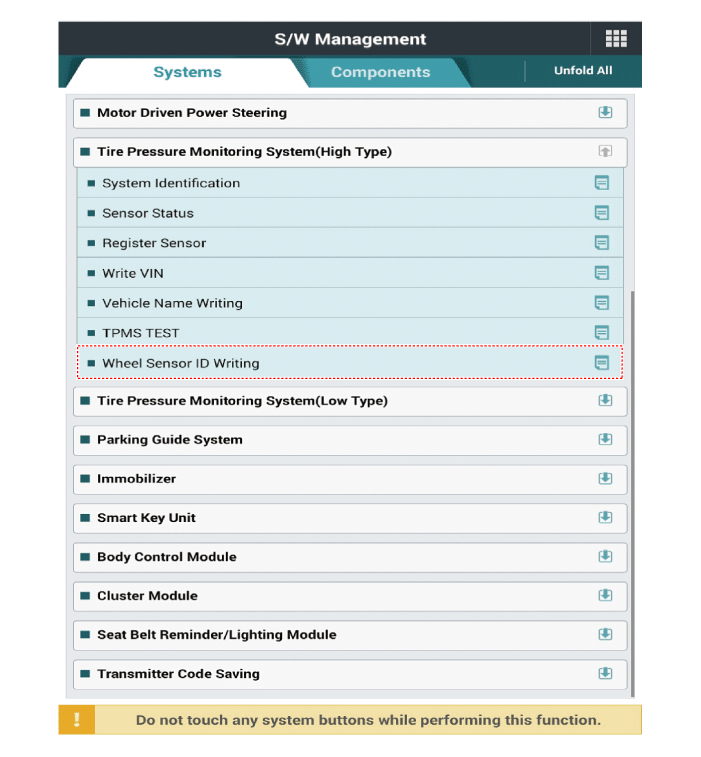

2.	Select the "vehicle model" and "TPMS" on KDS vehicle selection screen, then select OK.

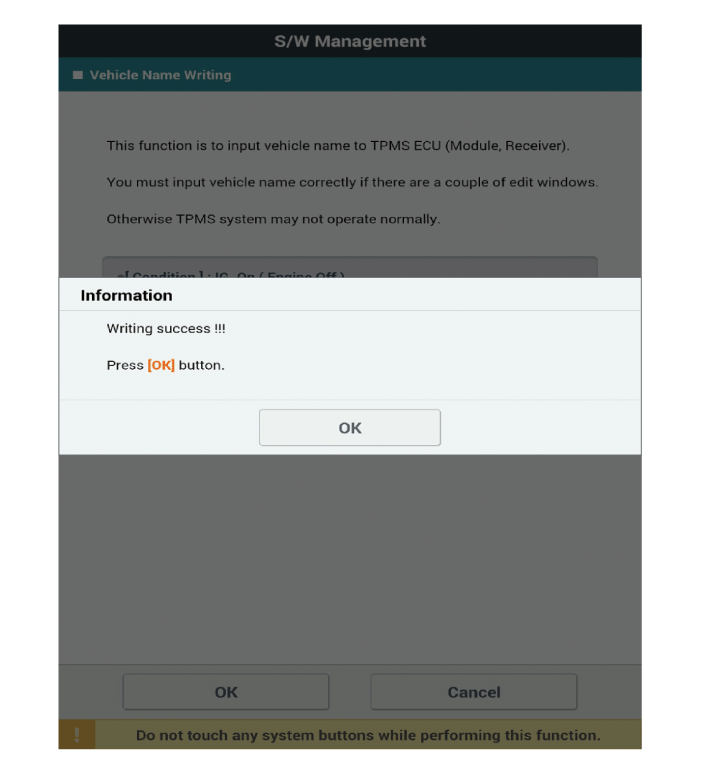

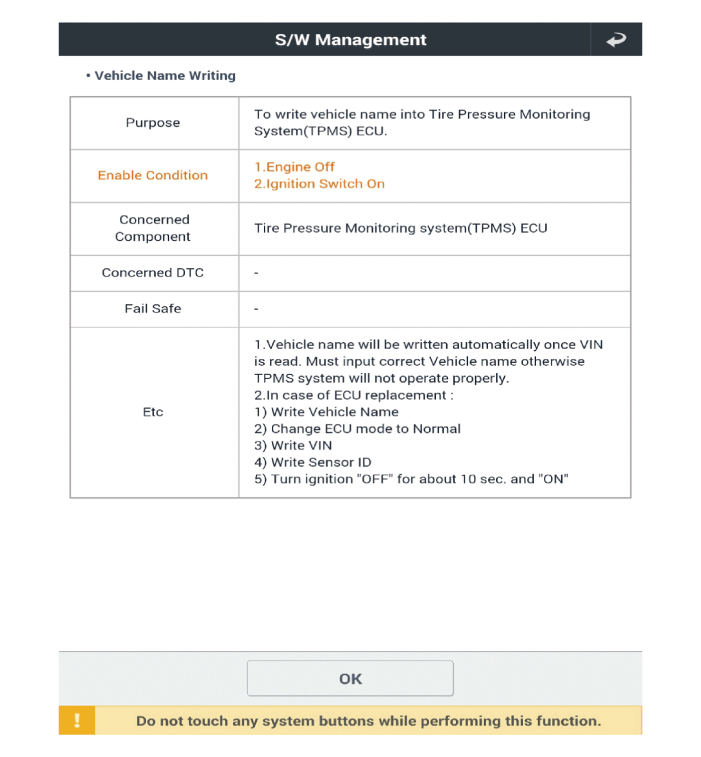

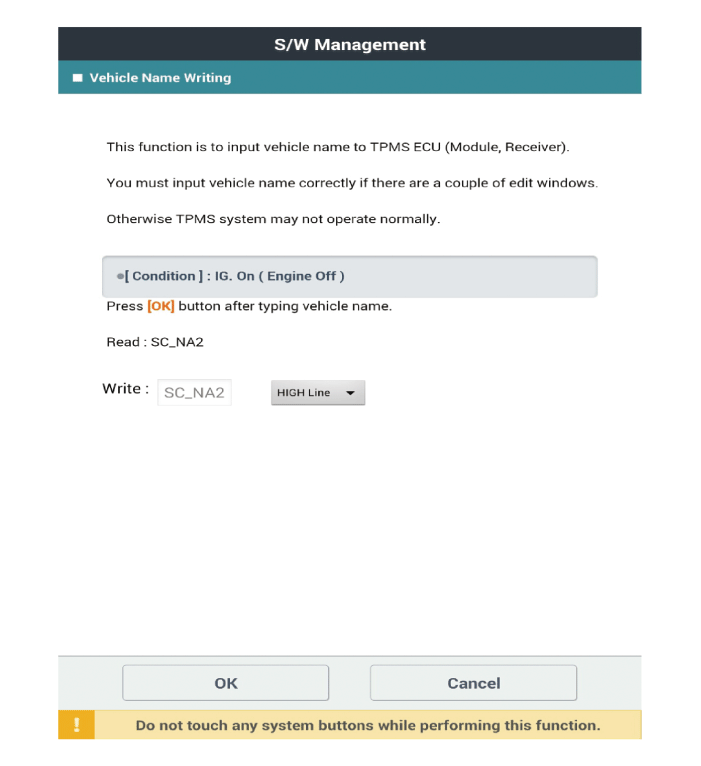

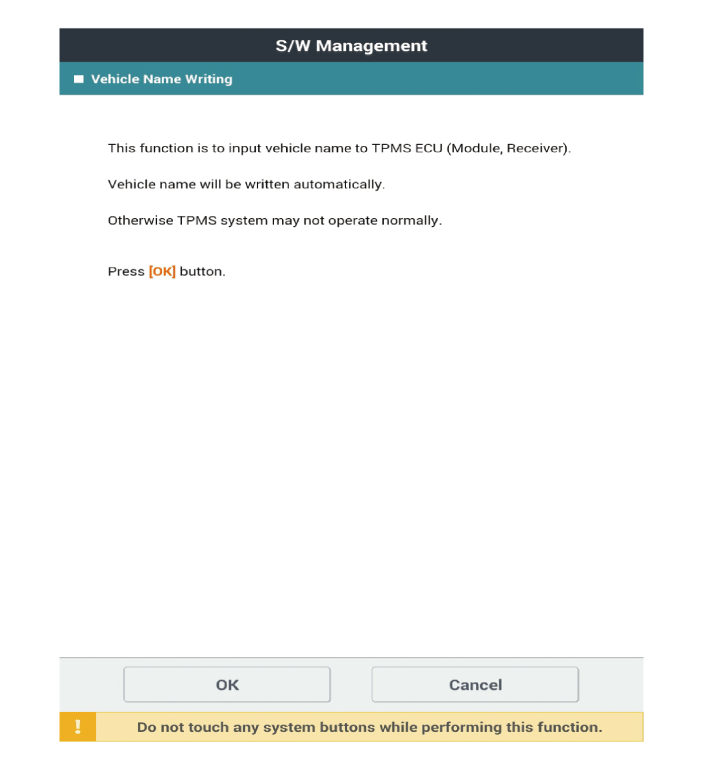

[Vehicle Name Writing Method]

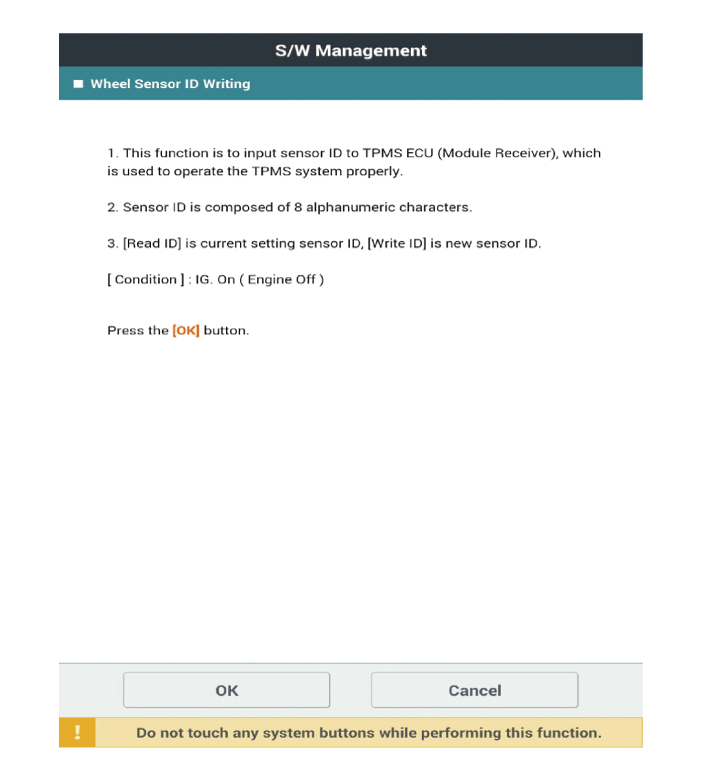

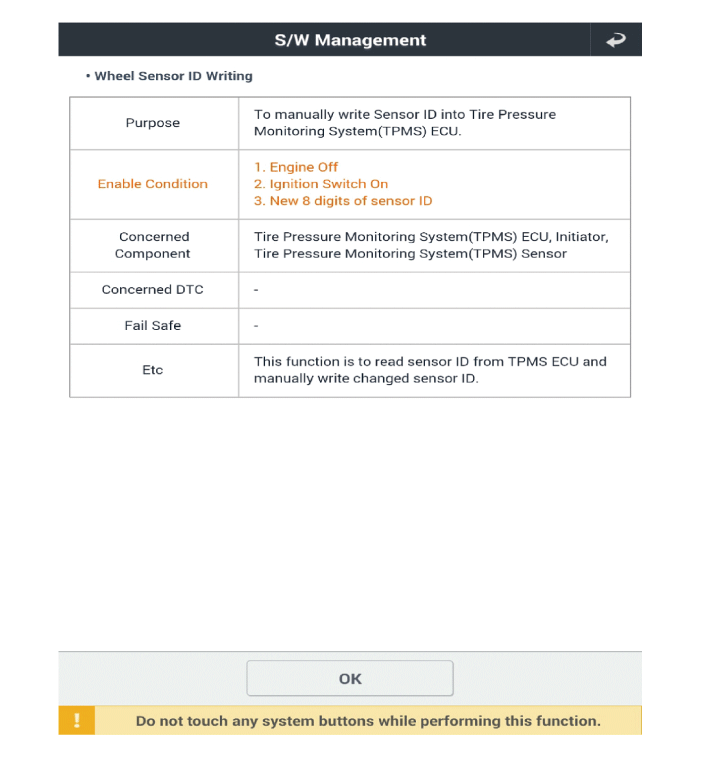

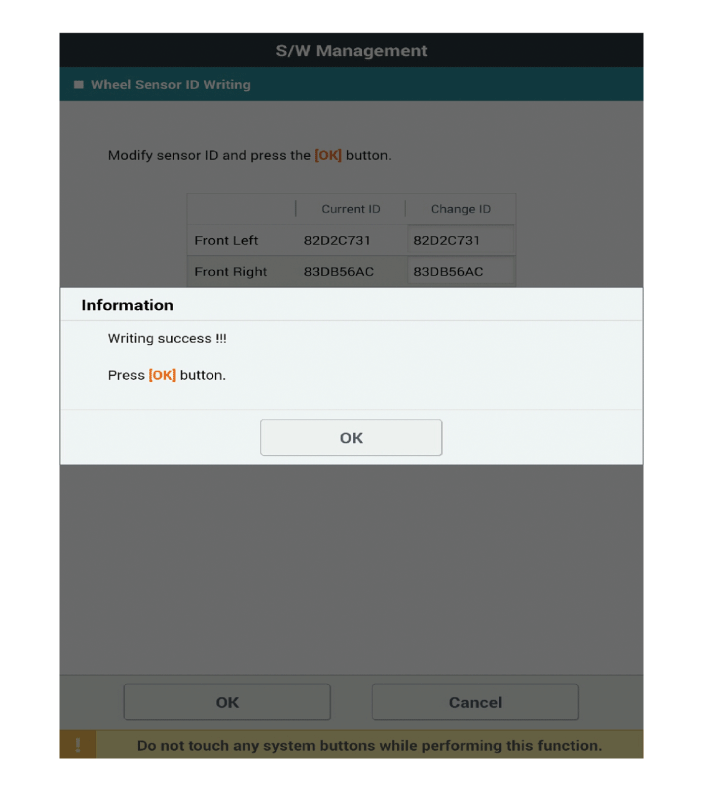

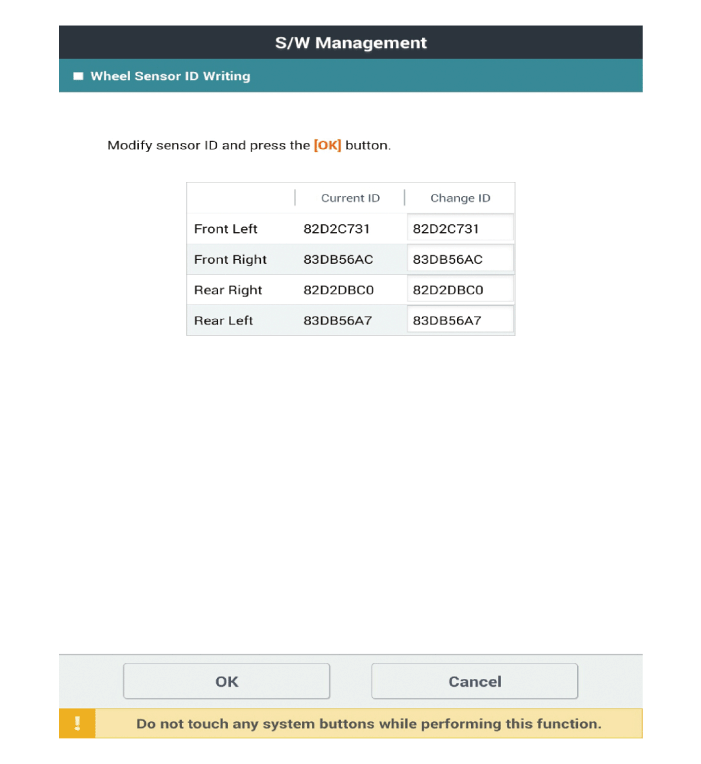

[Wheel Sensor ID Writing Method]

TPMS Sensor
