Kia Stinger: Rear Seat Belt / Rear Center Seat Belt Retractor

Kia Stinger CK 2018-2025 Service Manual / Front Seat Belt / Rear Seat Belt / Rear Center Seat Belt Retractor

Components and components location

Component Location

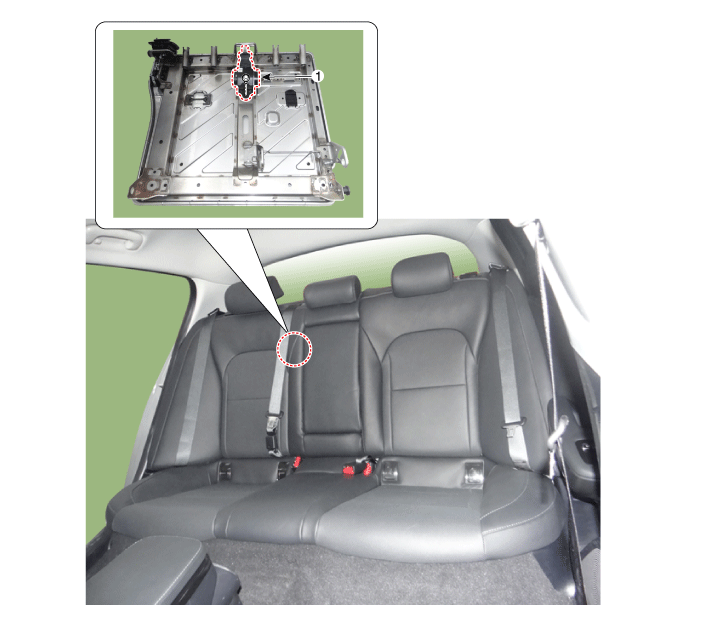

1. Rear center seat belt retractor

Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.

1.	Remove the rear seat back cover [RH]. (Refer to Rear Seat - "Rear Seat Back Cover")

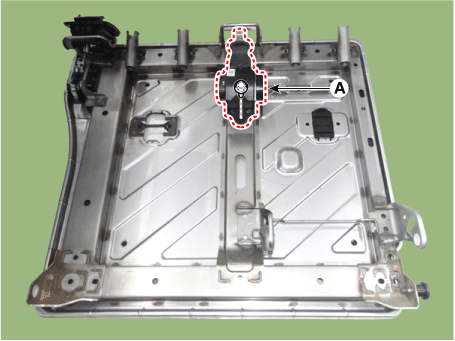

Remove the rear center seat belt retractor (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

Install in the reverse order of removal.

Replace any damaged clips.
