Kia Stinger: Features of your vehicle / Rear view monitor

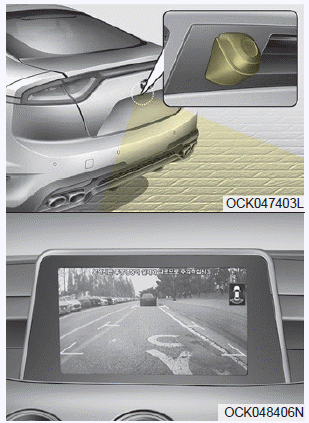

The rear view monitor will activate with the ignition switch ON, engine ON and
the shift lever in the R (Reverse) position. This system is a supplemental system
that shows the area behind the vehicle on the audio screen while backing up. If
the vehicle is equipped with a navigation system, then will display the image on
the navigation screen.
- This system is a supplemental system only. It is the responsibility of the
driver to always check the inside/outside rearview mirrors and the area behind
the vehicle before and while backing up.
- Always keep the camera lens clean. If lens is covered with foreign matter,
the camera may not operate normally.
WARNING - Backing & using camera
Never rely solely on the rear view monitor. You must always use methods of
viewing the area behind you including looking over both shoulders as well as continuously
checking all three rear view mirrors. Due to the difficulty of ensuring that the
area behind you remains clear, always back up slowly and stop immediately if you
suspect that a person, and especially a child, might be behind you.
