Kia Stinger: Body Side Molding / Roof Side Molding

Kia Stinger CK 2018-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding

Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

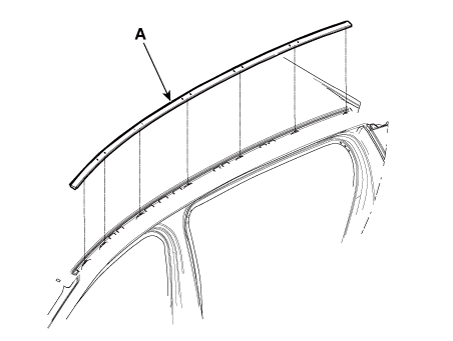

Using a remover, remove the roof side molding (A).



Always replace the roof side molding with a new one.

2.

Install in the reverse order of removal.



Replace any damaged clips.
