Kia Stinger: Seat Electrical / Seat Heater Switch

Kia Stinger CK 2018-2024 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch

Components and components location

Components

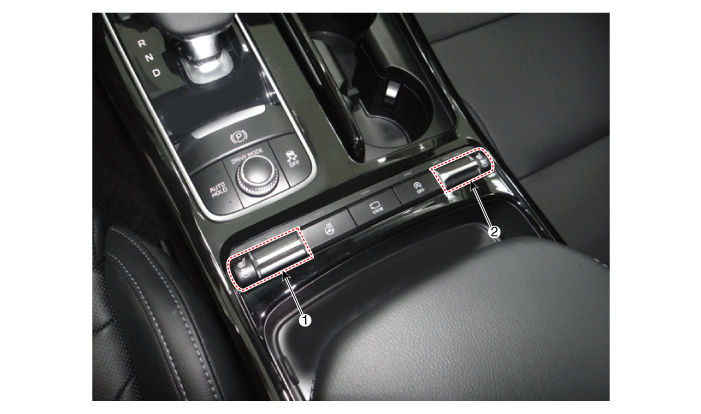

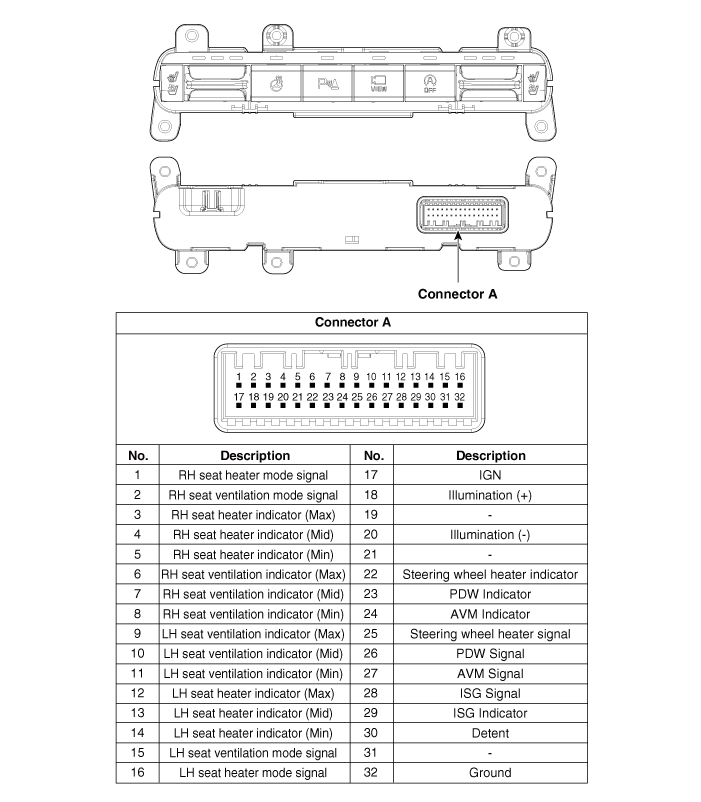

Front Seat Switch

1. Driver side seat heater switch

2. Passenger side seat heater switch

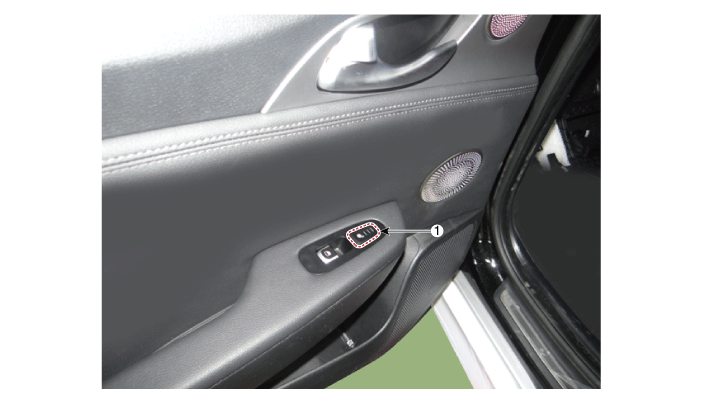

Rear Seat Switch

1. Rear seat heater switch (LH/RH)

Description and operation

Description

Heater Seat Smart Control Technology

•	To prevent low temperature burn, seat heater temperature will automatically be lowered after a certain period of time. (Low temperature burn condition: Over 30 minutes at 50°C)

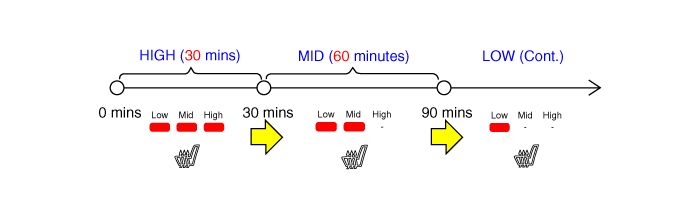

Heater Seat Smart Control Operation

[1st Row Seat]

•	Change to "MID" after 30 minutes in "HIGH", then "LOW" after 60 minutes in "MID"

•	Change to "LOW" after 60 minutes in "MID"

[2nd Row Seat]

•	Change to "MID" after 30 minutes in "HIGH", then "LOW" after 60 minutes in "MID"

•	Change to "LOW" after 60 minutes in "MID"

•	If temperature is raised manually within certain period of time after the temperature was lowered automatically, it will be lowered again soon to prevent overheating or low temperature burn.

•	This is normal operating condition as a safety device.

Schematic diagrams

Circuit Diagram

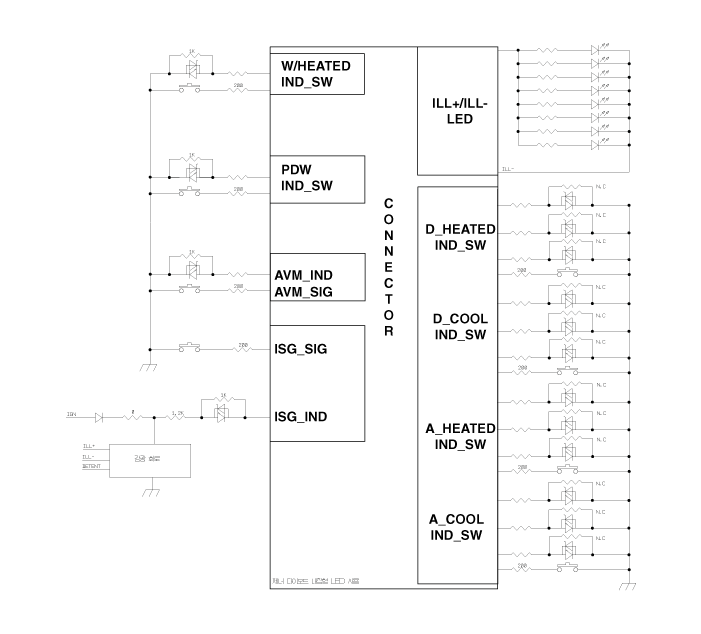

Front Seat Heater Swtich

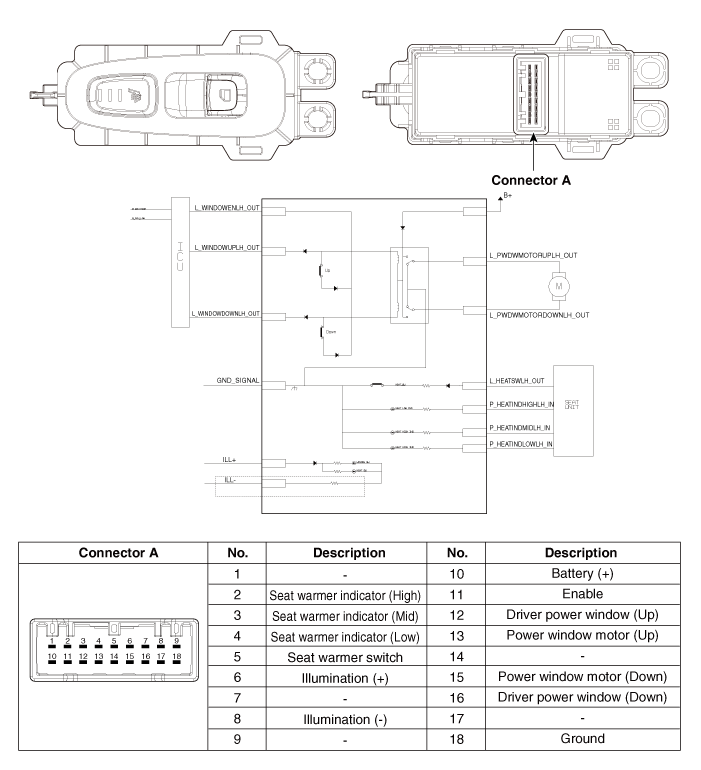

Rear Seat Heater Swtich

Repair procedures

Removal

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

Front Seat Heater Swtich

1.	Disconnect the negative (-) battery terminal.

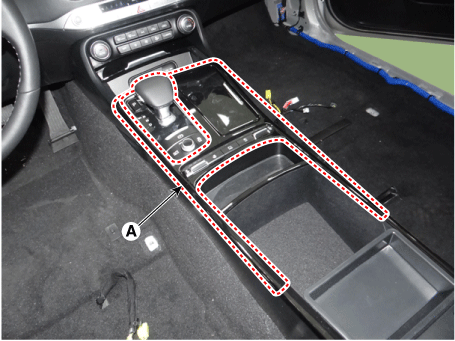

2.	Remvoe the console upper complete (A) by using a remover.

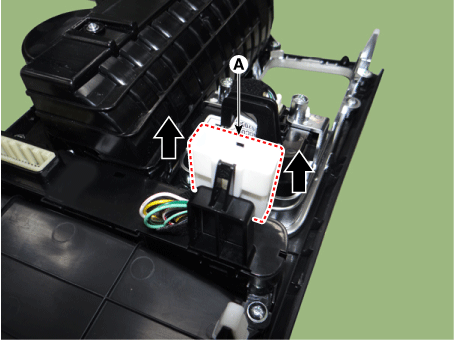

3.	Disconnect the connectors (A) from the console upper complete.

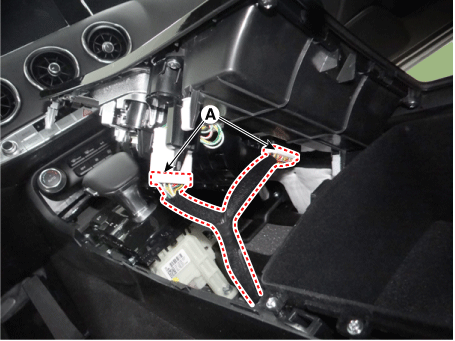

4.	Remove the connector (A) from the console floor switch complete.

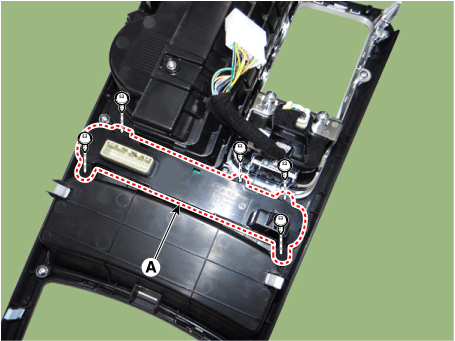

5.	Remove the console floor switch complete (A) after loosening the mounting screws.

Rear Seat Heater Swtich

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear door trim. (Refer to Body - "Rear Door Trim")

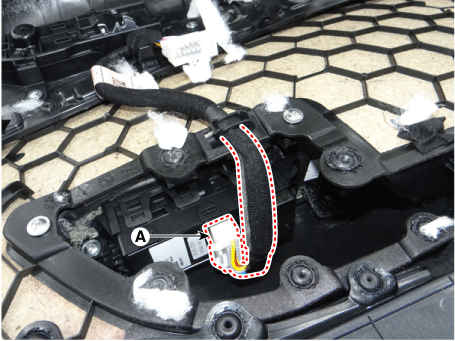

3.	Disconnect the power window switch connector (A).

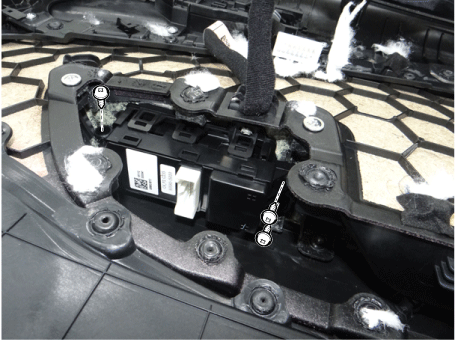

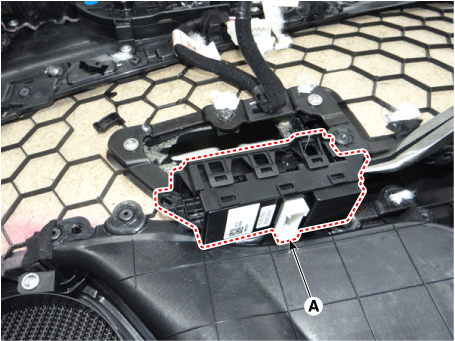

4.	Remove the power window switch (A) after loosening the mounting screws.

Installation

Front Seat Heater Swtich

1.	Install the console floor switch complete.

2.	Install the connector from the console floor switch complete.

3.	Connect the connectors from the console upper complete.

4.	Install the console upper complete.

5.	Connect the negative (-) battery terminal.

Rear Seat Heater Swtich

1.	Install the power window switch.

2.	Connect the power window switch connector.

3.	Install the rear door trim after connecting the connector.

4.	Connect the negative (-) battery terminal.
