Kia Stinger: Crash Pad / Steering Column Shroud Panel

Kia Stinger CK 2018-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel

Components and components location

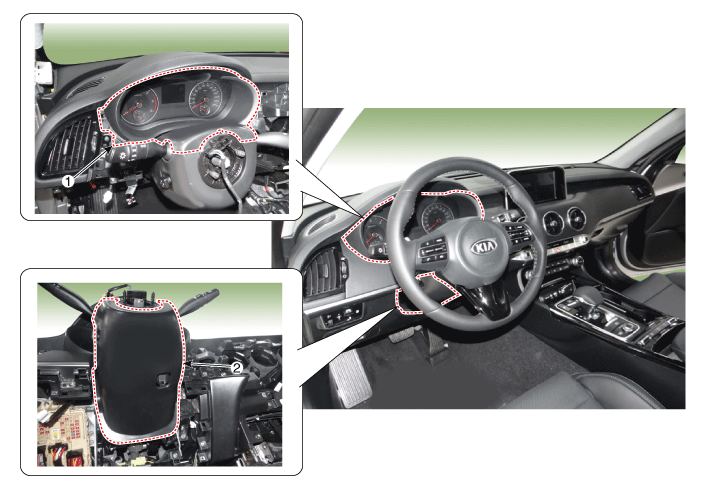

Component Location

1. Steering column shroud upper panel

2.Steering column shroud lower panel

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

[Steering column shroud upper panel]

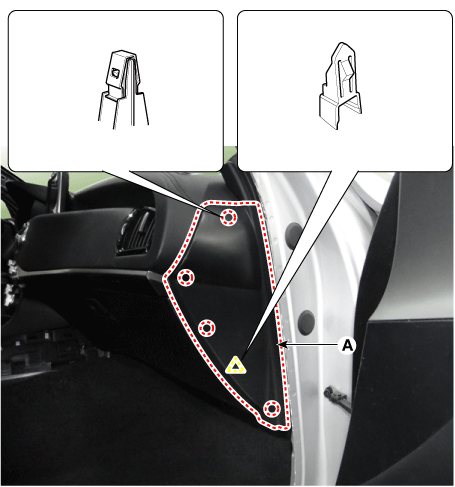

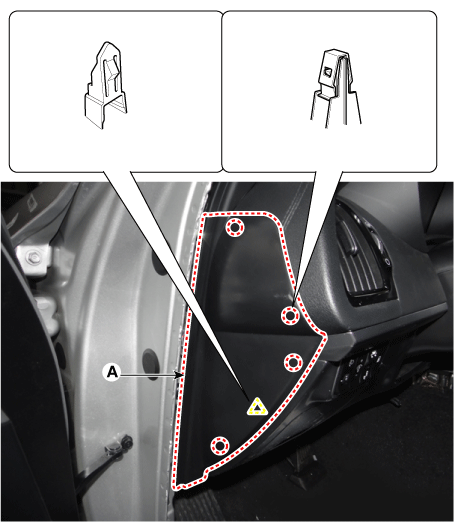

1.	Remove the crash pad side cover [LH] (A) by using a remover.

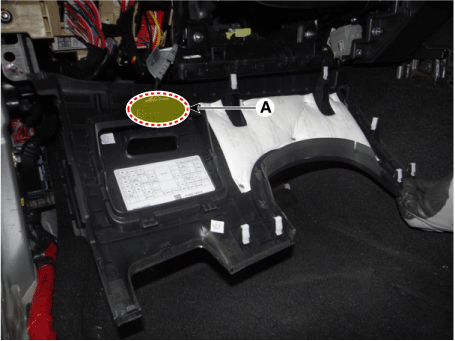

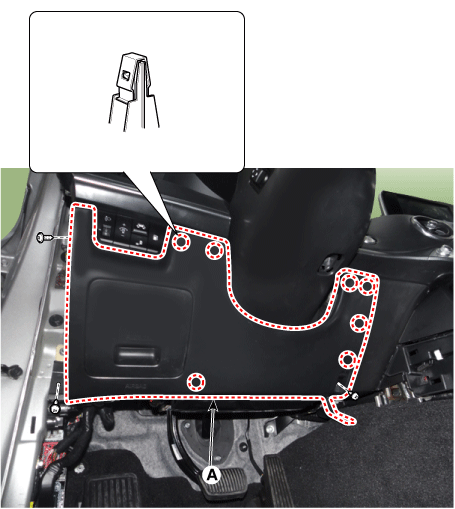

2.	Separate the crash pad lower panel (A) after loosening the bolts and screws.

3.	Disconnect the crash pad lower switch connector (A).

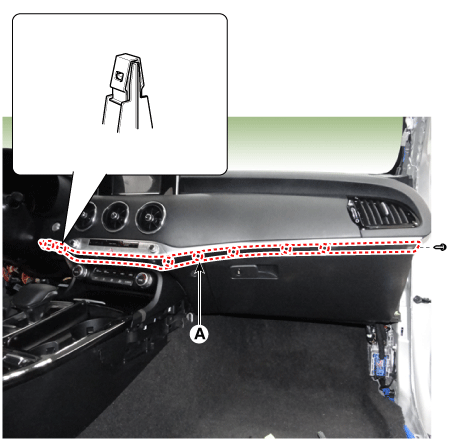

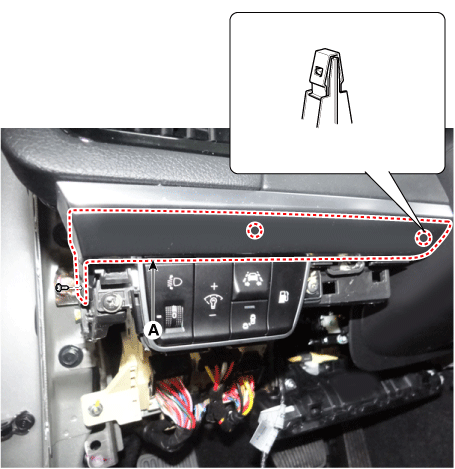

4.	Remove the crash pad garnish [LH] (A) after loosening the mounting screws.

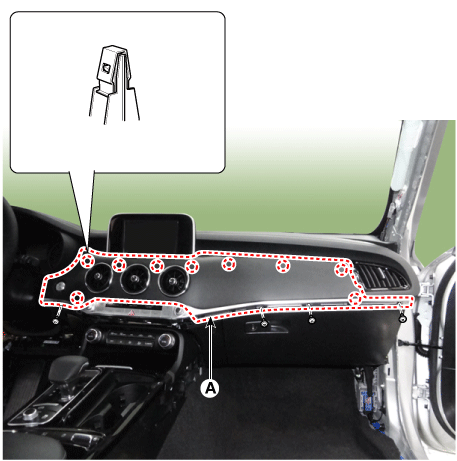

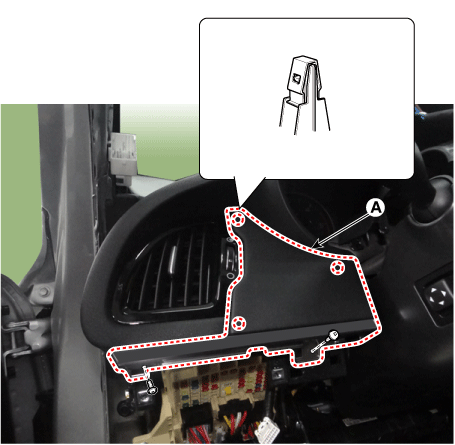

5.	Remove the crash pad driver side panel (A) after loosening the mounting screws.

6.	Remove the crash pad side cover [RH] (A) by using a remover.

7.	Remove the crash pad garnish [RH] (A) after loosening the mounting screws.

8.	Separate the crash pad passenger side panel (A) after loosening the mounting screws.

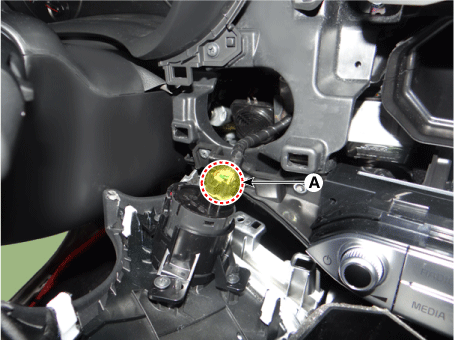

9.	Disconnect the start/stop button connector (A) and then remove the crash pad garnish.

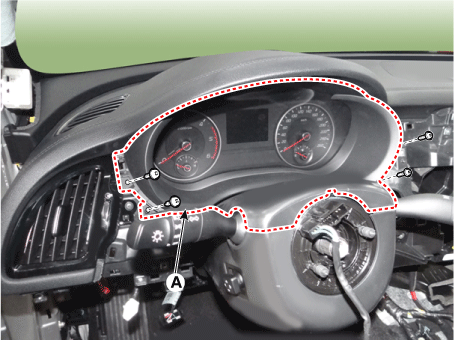

10.	Remove the cluster fascia panel (A) by using a remover.

11.

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.

[Steering column shroud lower panel]

1.	Remove the crash pad upper panel.

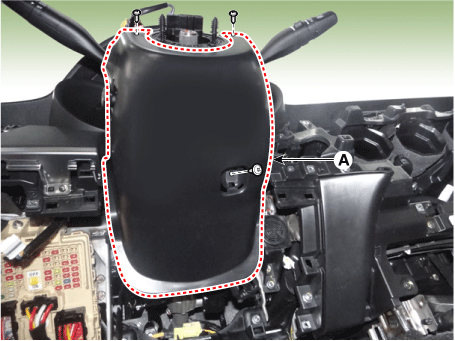

2.	Remove the steering column shroud lower panel (A) after loosening the mounting screws.

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.
