Kia Stinger: Hydraulic System / Valve Body

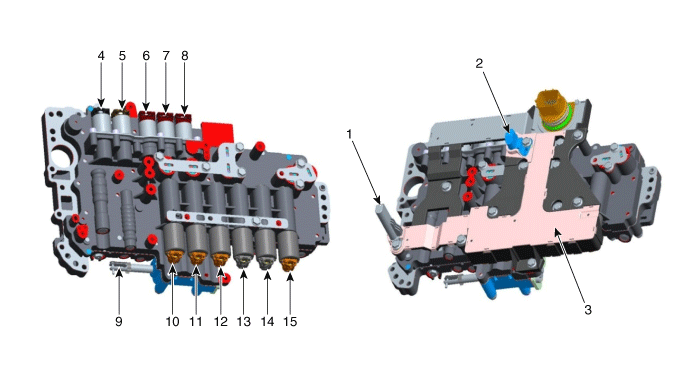

Components and components location
| Components |
| 1. Input speed sensor 2. Output speed sensor 3. E-Module 4. Line pressure control solenoid valve 5. Damper clutch control solenoid valve 6. P position ON/OFF Solenoid valve 7. D position ON/OFF Solenoid valve 8. R position ON/OFF Solenoid valve |
9. Parking release pistion
10. 8LR/B control solenoid valve 11. 6/C control solenoid valve 12. 27/B control solenoid valve 13. 35R/C control solenoid valve 14. 4&OD/C control solenoid valve 15. UD/C control solenoid valve |

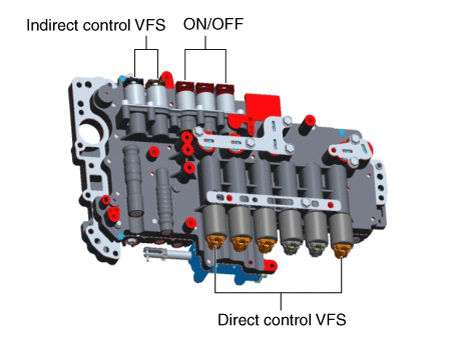

Description and operation
| Description |
The valve body is essential to automatic transmission control and consists of various valves used to control the oil feed from the oil pump.
Repair procedures
| Replacement |
It is not recommended to replace the valve body. If the valve body needs to be replaced, the automatic transmission assembly should be replaced and the oil pressure characteristics should be input using the KDS. If replacing the valve body, it is not possible to input the oil pressure characteristics using the KDS and if not performing the oil pressure characteristics input procedure, a shift shock or delay may occur. |
| 1. |
Replace the automatic transmission assembly. (Refer to Automatic Transmission System - "Automatic Transmission System") |
Oil Cooler
Components and components location
Components
1. Oil cooler tube
2. Oil cooler pipe
3. Oil cooler valve
4. Oil cooler
Repair procedures
...
8LR Brake Control Solenoid Valve (8LR/B_VFS)
Specifications
Specifications
Item
Specification
Control type
N/L (Normal Low)
Control pressure kpa (kgf/cm², ps ...
