Repair procedures
Removal
1.

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.

Remove the rear-left wheel & tire and wheel house cover.

3.

Remove the fuel tank air filter.

(Refer to Emission Control System - Fuel Tank Air Filter")

4.

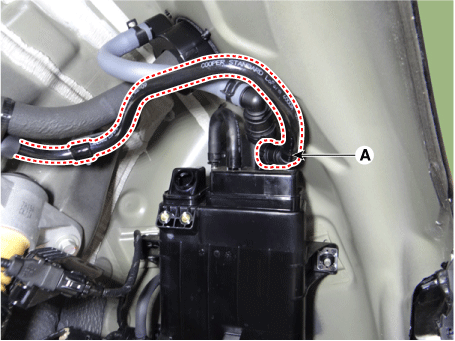

Disconnect the vapor hose quick-connector (A).

5.

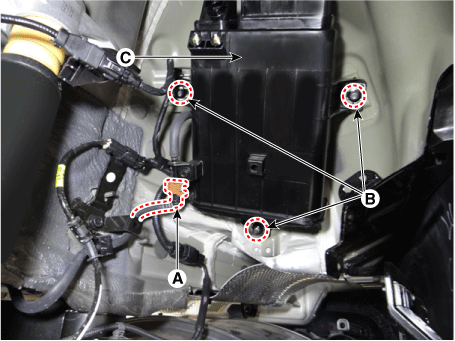

Remove the canister assembly (C) from the vehicle after removing the mounting nuts (B).

Inspection
1.

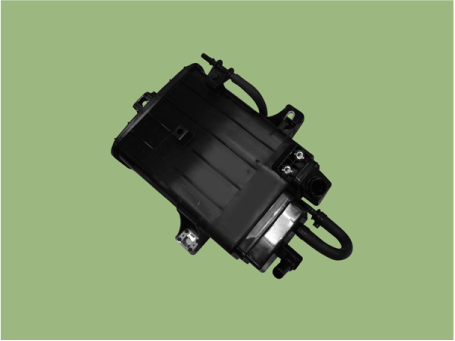

Check for the following items visually.

- Cracks or leakage of the canister

- Loose connection, distortion, or damage of the vapor hose/tube

A: Canister ↔ Atmosphere

B: Canister ↔ Fuel Tank

C: Canister ↔ Intake Manifold

Installation
1.

Install in the reverse order of removal.

Canister protector mounting bolt:

3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

Canister mounting bolt:

3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)
