Kia Stinger: Hydraulic System / Oil Pump Unit (OPU)

Kia Stinger CK 2018-2024 Service Manual / Automatic Transmission System / Hydraulic System / Oil Pump Unit (OPU)

Components and components location

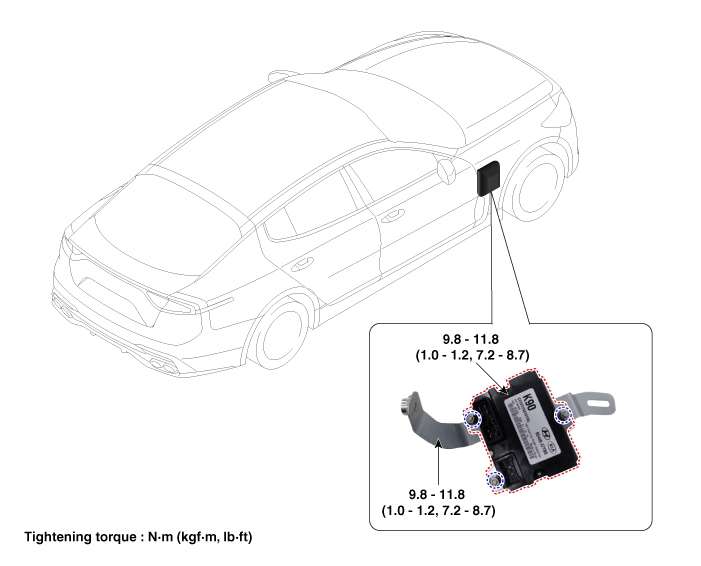

Components Location

1. Oil Pump Unit (OPU)

2. OPU bracket

Schematic diagrams

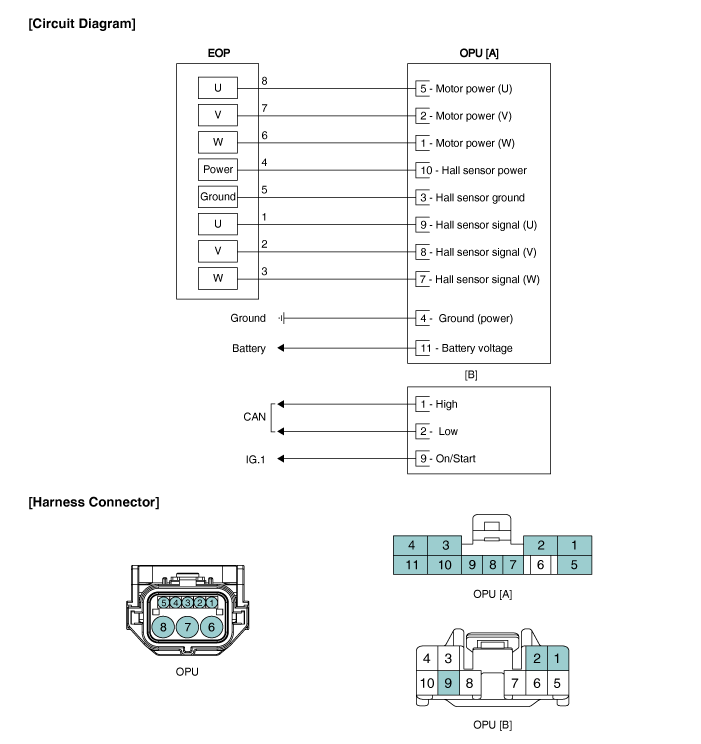

Circuit Diagram

Repair procedures

Removal

1.	Remove the integrated body control unit (IBU). (Refer to - Body Electrical System - "Integrated Body Control Unit")

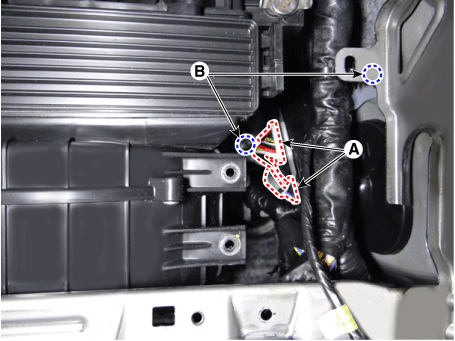

Disconnect the OPU connector (A) and then remove the OPU by loosening the OPU bracket nut (B).

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

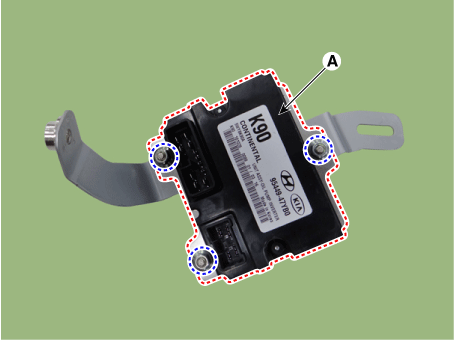

Remove the OPU (A) from the bracket.

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

Installation

1.	Install in the reverse order of removal.
