Components and components location

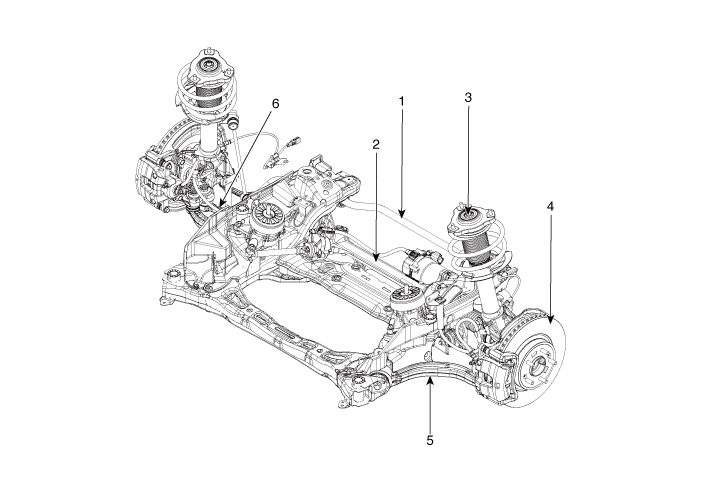

Components Location

1. Front stabilizer bar
2. Steering gear box
3. Front strut assembly
4. Front axle
5. Compression arm
6. Lateral arm

Specifications
Service data Service Data Front Suspension Item Specification Suspension type Macpherson multi link Shock absorb ...

Front Strut Assembly
Components and components location Components 1. Shock absorber 2. Spring lower pad 3. Coil spring 4. Dust cover 5. Bumper stopper 6. Spring upper co ...
